CTEK SMARTPASS 120S and 250SE DC to DC charger basic features and install information

MilesD

Grenadier Owner
Forum Donor
Local time
3:30 PM
Joined
Nov 29, 2022
Messages
62
Reaction score
160
Location
London
Jean
Do we continue with the Smartpass saga?

In the next picture, taken in a car recently delivered to Hedin Belgium, we will play a game, "please search for the 10 differences" with those who got a Smartpass box in the car:
View attachment 7825092
Result:
  1. No Smartpass box in the car
  2. No Smartpass manual in the car
  3. A red warning sticker!
  4. The lower right connector isn't a connector
  5. No CTEK brand mentioned
  6. to 10. I didn't find myself, perhaps Ineos or CTEK can help :devilish: :unsure:

My guess, we early birds had luck!
Like those who didn't order a utility (L-track) rail got those for free because the delivery of the other strips was delayed, those who ordered Trialmasters or cars with the full electrical options (second battery) got a full functional CTEK Smartpass instead of a less functional and cheaper CTEK because there were delivery delays!

This is a guess, of course, but a reasonable guess.

I already see worried or disappointed faces from those people who didn't get their cars yet! :mad:
I understand this is probably bad news!

I don't understand that Ineos, and their lurkers, didn't warn us here on this forum!

I still am not 100% sure of course, should be confirmed by Ineos.

I did ask my dealer to ask the following question to Ineos:
"What is the technical difference between the CTEK Smartpass in the Grenadier and a Standard CTEK Smartpass?"

And I still hope and believe that those who got the box, got the standard Smartpass!
Jean

Response from Ctek, which I think may muddy the water further.

Hello Miles,
I've asked out technicians about your question and received a response form them:
"Grenadier has no smart alternator. SMARTPASS is to recharge the Service battery, maintenance charge the starter battery and as a start assist function."


I confess to now being lost - but do have a shiny ctek branded 120 smart pass that came with the vehicle (twin battery option), a red cable unconnected, a 250se in readiness for solar etc, and 2 bus bars kindly supplied FOC by Ctek.

Am I incorrect in thinking Ineos have removed the smart alternator, for a std one? hence ctek installing white label 120’s?.

If so, then the red cable IS redundant, but I assume all other wiring to include 250 is relevant, and I can run a fridge from the 120 as ctek show in thier dwgs?.


Logsplitter

Photo Contest Winner
Grenadier Owner
Lifetime Supporter
Local time
3:30 PM
Joined
Oct 31, 2022
Messages
2,803
Reaction score
10,020
Location
🇬🇧
Jean

Jean

Response from Ctek, which I think may muddy the water further.

Hello Miles,
I've asked out technicians about your question and received a response form them:
"Grenadier has no smart alternator. SMARTPASS is to recharge the Service battery, maintenance charge the starter battery and as a start assist function."


I confess to now being lost - but do have a shiny ctek branded 120 smart pass that came with the vehicle (twin battery option), a red cable unconnected, a 250se in readiness for solar etc, and 2 bus bars kindly supplied FOC by Ctek.

Am I incorrect in thinking Ineos have removed the smart alternator, for a std one? hence ctek installing white label 120’s?.

If so, then the red cable IS redundant, but I assume all other wiring to include 250 is relevant, and I can run a fridge from the 120 as ctek show in thier dwgs?.
🤔


Tinki

Grenadier Owner
Lifetime Supporter
Local time
3:30 PM
Joined
Jun 29, 2022
Messages
414
Reaction score
1,022
Jean

Jean

Response from Ctek, which I think may muddy the water further.

Hello Miles,
I've asked out technicians about your question and received a response form them:
"Grenadier has no smart alternator. SMARTPASS is to recharge the Service battery, maintenance charge the starter battery and as a start assist function."


I confess to now being lost - but do have a shiny ctek branded 120 smart pass that came with the vehicle (twin battery option), a red cable unconnected, a 250se in readiness for solar etc, and 2 bus bars kindly supplied FOC by Ctek.

Am I incorrect in thinking Ineos have removed the smart alternator, for a std one? hence ctek installing white label 120’s?.

If so, then the red cable IS redundant, but I assume all other wiring to include 250 is relevant, and I can run a fridge from the 120 as ctek show in thier dwgs?.
My man Miles this post jusit opened pandoras box . ahhaha .


DaBull

Grenadier Owner
Lifetime Supporter
Local time
7:30 AM
Joined
Dec 28, 2022
Messages
1,410
Reaction score
2,693
Location
California
Jean

Jean

Response from Ctek, which I think may muddy the water further.

Hello Miles,
I've asked out technicians about your question and received a response form them:
"Grenadier has no smart alternator. SMARTPASS is to recharge the Service battery, maintenance charge the starter battery and as a start assist function."


I confess to now being lost - but do have a shiny ctek branded 120 smart pass that came with the vehicle (twin battery option), a red cable unconnected, a 250se in readiness for solar etc, and 2 bus bars kindly supplied FOC by Ctek.

Am I incorrect in thinking Ineos have removed the smart alternator, for a std one? hence ctek installing white label 120’s?.

If so, then the red cable IS redundant, but I assume all other wiring to include 250 is relevant, and I can run a fridge from the 120 as ctek show in thier dwgs?.
The Ctek is a dark abyss of which we will never get out of.....DaBull


ECrider

Grenadier Owner
Lifetime Supporter
Local time
3:30 PM
Joined
May 4, 2022
Messages
3,342
Reaction score
5,582
Location
UK
got the mkii SMARTPass;


Attachments

  • IMG_9536.jpeg
    163.8 KB · Views: 76

AnD3rew

Inch deep and a mile wide.
Grenadier Owner
Lifetime Supporter
Local time
2:30 AM
Joined
Aug 24, 2022
Messages
2,436
Reaction score
6,043
Jean

Jean

Response from Ctek, which I think may muddy the water further.

Hello Miles,
I've asked out technicians about your question and received a response form them:
"Grenadier has no smart alternator. SMARTPASS is to recharge the Service battery, maintenance charge the starter battery and as a start assist function."


I confess to now being lost - but do have a shiny ctek branded 120 smart pass that came with the vehicle (twin battery option), a red cable unconnected, a 250se in readiness for solar etc, and 2 bus bars kindly supplied FOC by Ctek.

Am I incorrect in thinking Ineos have removed the smart alternator, for a std one? hence ctek installing white label 120’s?.

If so, then the red cable IS redundant, but I assume all other wiring to include 250 is relevant, and I can run a fridge from the 120 as ctek show in thier dwgs?.
This is getting ridiculous. I don’t really believe that the Grenadier doesn’t have a smart alternator. I can come up with at least half a dozen theories and ideas but none are useful without some actual information from INEOS.

This is actually the one thing from INEOS that is really annoying me, and that I can’t excuse, is their complete lack of information on the electrical systems and guidance on it.

They knew and even acknowledged early on that owners would want to accessorise and modify their vehicles and particularly run electrical accessories, hence the high load panel and aux battery system. But it’s next to useless without this kind of information to help owners. To the extent that we can actually know anything (limited) it currently appears to go against most/all of the conventional execution of these kinds of systems which makes it all the more imperative that they provide information on the operation, philosophy and usage of the electrical systems. It seems they got 80% of the way there with the high load electrical preparation and just gave up bofore adding plugs to the end of the wires and writing manuals and instructions.

INEOS if you are reading here please, it’s time to come out of hiding and provide some some answers and assistance. We can work with whatever you have done, but we need the baseline information to be able to do that safely, efficiently and effectively.

I understand you may not want to specifically give approval to change and modify systems, I get that, but you owe us the baseline information on which we can make our own decisions.

Last edited:

ECrider

Grenadier Owner
Lifetime Supporter
Local time
3:30 PM
Joined
May 4, 2022
Messages
3,342
Reaction score
5,582
Location
UK
did a manual come with this mkii? (my mk1 came with the manual in the box under the front pass seat - no bus bars)
no manual or box.


Arkaig

Grenadier Owner
Lifetime Supporter
Local time
3:30 PM
Joined
Nov 25, 2021
Messages
784
Reaction score
2,467
Location
PH34 4EL, Scotland
This is actually the one thing from INEOS that is really annoying me, and that I can’t excuse, is their complete lack of information on the electrical systems and guidance on it.

They knew and even acknowledged early on that owners would want to accessorise and modify their vehicles and particularly run electrical accessories, hence the high load panel and aux battery system. But it’s next to useless without this kind of information to help owners. To the extent that we can actually know anything (limited) it currently appears to go against most/all of the conventional execution of these kinds of systems which makes it all the more imperative that they provide information on the operation, philosophy and usage of the electrical systems. It seems they got 80% of the way there with the high load electrical preparation and just gave up bofore adding plugs to the end of the wires and writing manuals and instructions.

I agree.


bakepl

Grenadier Owner
Local time
1:30 AM
Joined
Feb 11, 2022
Messages
540
Reaction score
996
Location
Brisbane, Australia
This is getting ridiculous. I don’t really believe that the Grenadier doesn’t have a smart alternator. I can come up with at least half a dozen theories and ideas but none are useful without some actual information from INEOS.

This is actually the one thing from INEOS that is really annoying me, and that I can’t excuse, is their complete lack of information on the electrical systems and guidance on it.

They knew and even acknowledged early on that owners would want to accessorise and modify their vehicles and particularly run electrical accessories, hence the high load panel and aux battery system. But it’s next to useless without this kind of information to help owners. To the extent that we can actually know anything (limited) it currently appears to go against most/all of the conventional execution of these kinds of systems which makes it all the more imperative that they provide information on the operation, philosophy and usage of the electrical systems. It seems they got 80% of the way there with the high load electrical preparation and just gave up bofore adding plugs to the end of the wires and writing manuals and instructions.

INEOS if you are reading here please, it’s time to come out of hiding and provide some some answers and assistance. We can work with whatever you have done, but we need the baseline information to be able to do that safely, efficiently and effectively.

I understand you may not want to specifically give approval to change and modify systems, I get that, but you owe us the baseline information on which we can make our own decisions.
Agree totally with lack of information and in particular the electricals but with the exception of JH on FB, lack of info (either part answers to questions or incorrect) has been the norm for this adventure. I'm not condoning it just is what it is.

Other than that and now I've pulled mine partially apart to install items the vehicle is a joy to work on. The smartpass seems to work as intended and has features I guess one might not want but they are there, like I'd prefer total isolation from the start battery and in one direction but is what it is from Ctek. E.g. the start assist in some respects is a good feature but I'd prefer a manual type of start assist for this.

Re the red wire...... (no not again) Ctek did get back to me and said 'if not sure if vehicle has smart alt or not just connect the red wire'. From that answer it appears the ctek once connected will use the red wire if it needs it. If it doesn't need it no damage done.

I've fitted a busbar to the consumer out of the Ctek to run a twin compressor and fridge/power outlets to take advantage of the low power cutoff (a feature I would need to have fitted if this device didn't have it built in). I've also used the 12v çompressor relay signal wire from under the back seat to trigger the Albright solenoid in the rear so I have power to the Nato plug when car is running - powers the van - easy enough.

I'll likely consider running the present power feed for the accessory fuse/relay module (one that fuses the exterior and footwell outlets etc) to the busbar from the Ctek as well. I'm waiting to see if a wiring diagram turns up for this one or in it's absence in the fullness of time (subjective I know)..... test the 80 amp outlet from the Ineos 'bolt' style fuse box to confirm this is the correct cable.

One thing left to do is a solar feed in for the Ctek 250 and may replace the DTP 25amp exterior plug that I'm not using for this - undecided.

The other is trying to find a 13pin plug that someone has cut off so I can scavenge the pins - so if anyone in Aus is replacing theirs with a 7 pin and throwing the 13 out I'd be happy to pay postage.. 😀

I'd dearly love Autel or Launch to bring out a bi-directional OBD tool - again in the fullness of time guess they will but I'd prefer to tour with one than without. Have a great day everyone. 😃


KDJDGrenadier

Grenadier Owner
Local time
1:30 AM
Joined
Oct 12, 2022
Messages
134
Reaction score
140
Location
Brisbane Australia
Agree totally with lack of information and in particular the electricals but with the exception of JH on FB, lack of info (either part answers to questions or incorrect) has been the norm for this adventure. I'm not condoning it just is what it is.

Other than that and now I've pulled mine partially apart to install items the vehicle is a joy to work on. The smartpass seems to work as intended and has features I guess one might not want but they are there, like I'd prefer total isolation from the start battery and in one direction but is what it is from Ctek. E.g. the start assist in some respects is a good feature but I'd prefer a manual type of start assist for this.

Re the red wire...... (no not again) Ctek did get back to me and said 'if not sure if vehicle has smart alt or not just connect the red wire'. From that answer it appears the ctek once connected will use the red wire if it needs it. If it doesn't need it no damage done.

I've fitted a busbar to the consumer out of the Ctek to run a twin compressor and fridge/power outlets to take advantage of the low power cutoff (a feature I would need to have fitted if this device didn't have it built in). I've also used the 12v çompressor relay signal wire from under the back seat to trigger the Albright solenoid in the rear so I have power to the Nato plug when car is running - powers the van - easy enough.

I'll likely consider running the present power feed for the accessory fuse/relay module (one that fuses the exterior and footwell outlets etc) to the busbar from the Ctek as well. I'm waiting to see if a wiring diagram turns up for this one or in it's absence in the fullness of time (subjective I know)..... test the 80 amp outlet from the Ineos 'bolt' style fuse box to confirm this is the correct cable.

One thing left to do is a solar feed in for the Ctek 250 and may replace the DTP 25amp exterior plug that I'm not using for this - undecided.

The other is trying to find a 13pin plug that someone has cut off so I can scavenge the pins - so if anyone in Aus is replacing theirs with a 7 pin and throwing the 13 out I'd be happy to pay postage.. 😀

I'd dearly love Autel or Launch to bring out a bi-directional OBD tool - again in the fullness of time guess they will but I'd prefer to tour with one than without. Have a great day everyone. 😃
Thanks Bakepl for the detailed post. Any pictures or part numbers for the busbar going to the consumer outlet would be great if you have time. Curious how you mounted it.


bakepl

Grenadier Owner
Local time
1:30 AM
Joined
Feb 11, 2022
Messages
540
Reaction score
996
Location
Brisbane, Australia
Thanks Bakepl for the detailed post. Any pictures or part numbers for the busbar going to the consumer outlet would be great if you have time. Curious how you mounted it.
The busbar is one I had spare from a boat build. It really is overkill given the amps of the Ctek consumer out but fits well and solid like the car :D . (and don't forget still need to fuse devices from this busbar.) There's plenty of choice online or at marine/12 volt shops etc.

I have mounted it just behind the aux battery using two spare studs. Some are putting air compressors in this location but I have a twin compressor that due to size needs another location.

This is a similar busbar I have but you could go a lot lighter/more cost effective - mine has the M8 studs rather than M10:



This site contains affiliate links for which The Grenadier Forum may be compensated.

TheDocAUS

Grenadier Owner
Lifetime Supporter
Local time
2:30 AM
Joined
Mar 8, 2023
Messages
2,375
Reaction score
4,159
Location
Eromanga
Last edited:

KDJDGrenadier

Grenadier Owner
Local time
1:30 AM
Joined
Oct 12, 2022
Messages
134
Reaction score
140
Location
Brisbane Australia

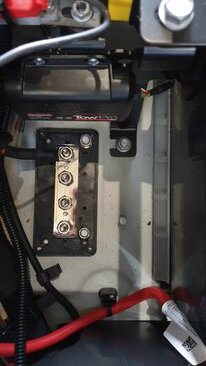

The busbar is one I had spare from a boat build. It really is overkill given the amps of the Ctek consumer out but fits well and solid like the car :D . (and don't forget still need to fuse devices from this busbar.) There's plenty of choice online or at marine/12 volt shops etc.

I have mounted it just behind the aux battery using two spare studs. Some are putting air compressors in this location but I have a twin compressor that due to size needs another location.

This is a similar busbar I have but you could go a lot lighter/more cost effective - mine has the M8 studs rather than M10:


View attachment 7825954
Great work there with the Busbar install. I am now thinking i will do the same as i have a few items i want to run off the consumer output from the 120S.

This site contains affiliate links for which The Grenadier Forum may be compensated.

KDJDGrenadier

Grenadier Owner
Local time
1:30 AM
Joined
Oct 12, 2022
Messages
134
Reaction score
140
Location
Brisbane Australia
Given the 80A output, something like this would work well:
View attachment 7825958
DCPU i have a compressor to connect but it draws a maximum of 35amps. I will need something a little larger as the Blue Sea System 5056 has a max of 25A per circuit. However it does look like a great bit of kit.

Last edited:

Logsplitter

Photo Contest Winner
Grenadier Owner
Lifetime Supporter
Local time
3:30 PM
Joined
Oct 31, 2022
Messages
2,803
Reaction score
10,020
Location
🇬🇧
Agree totally with lack of information and in particular the electricals but with the exception of JH on FB, lack of info (either part answers to questions or incorrect) has been the norm for this adventure. I'm not condoning it just is what it is.

Other than that and now I've pulled mine partially apart to install items the vehicle is a joy to work on. The smartpass seems to work as intended and has features I guess one might not want but they are there, like I'd prefer total isolation from the start battery and in one direction but is what it is from Ctek. E.g. the start assist in some respects is a good feature but I'd prefer a manual type of start assist for this.

Re the red wire...... (no not again) Ctek did get back to me and said 'if not sure if vehicle has smart alt or not just connect the red wire'. From that answer it appears the ctek once connected will use the red wire if it needs it. If it doesn't need it no damage done.

I've fitted a busbar to the consumer out of the Ctek to run a twin compressor and fridge/power outlets to take advantage of the low power cutoff (a feature I would need to have fitted if this device didn't have it built in). I've also used the 12v çompressor relay signal wire from under the back seat to trigger the Albright solenoid in the rear so I have power to the Nato plug when car is running - powers the van - easy enough.

I'll likely consider running the present power feed for the accessory fuse/relay module (one that fuses the exterior and footwell outlets etc) to the busbar from the Ctek as well. I'm waiting to see if a wiring diagram turns up for this one or in it's absence in the fullness of time (subjective I know)..... test the 80 amp outlet from the Ineos 'bolt' style fuse box to confirm this is the correct cable.

One thing left to do is a solar feed in for the Ctek 250 and may replace the DTP 25amp exterior plug that I'm not using for this - undecided.

The other is trying to find a 13pin plug that someone has cut off so I can scavenge the pins - so if anyone in Aus is replacing theirs with a 7 pin and throwing the 13 out I'd be happy to pay postage.. 😀

I'd dearly love Autel or Launch to bring out a bi-directional OBD tool - again in the fullness of time guess they will but I'd prefer to tour with one than without. Have a great day everyone. 😃
Could you explain how you used the signal wire from the 40a supply in the battery compartment. I’m aware where the 40supply is for the compressor that seems to be permanently live but I can’t get my head around how you used that signal wire to turn on the rear solenoid for the nato plug. Thanks 👍🏼
