I currently have a Wolfbox G900 dashcam attached to the mirror. I also have a kit for attaching it directly to the window, but I don't know how to remove the original mirror. How did you do that ?
Sweet. How did you run the wire to the exterior camera? I have seen some people mount it inside the door behind the glass to keep it all inside the vehicle. Did you drill through the roof to pass the wire? I am going to install a wolf box as well when I get mine. Any other pics you can share would be awesome :)

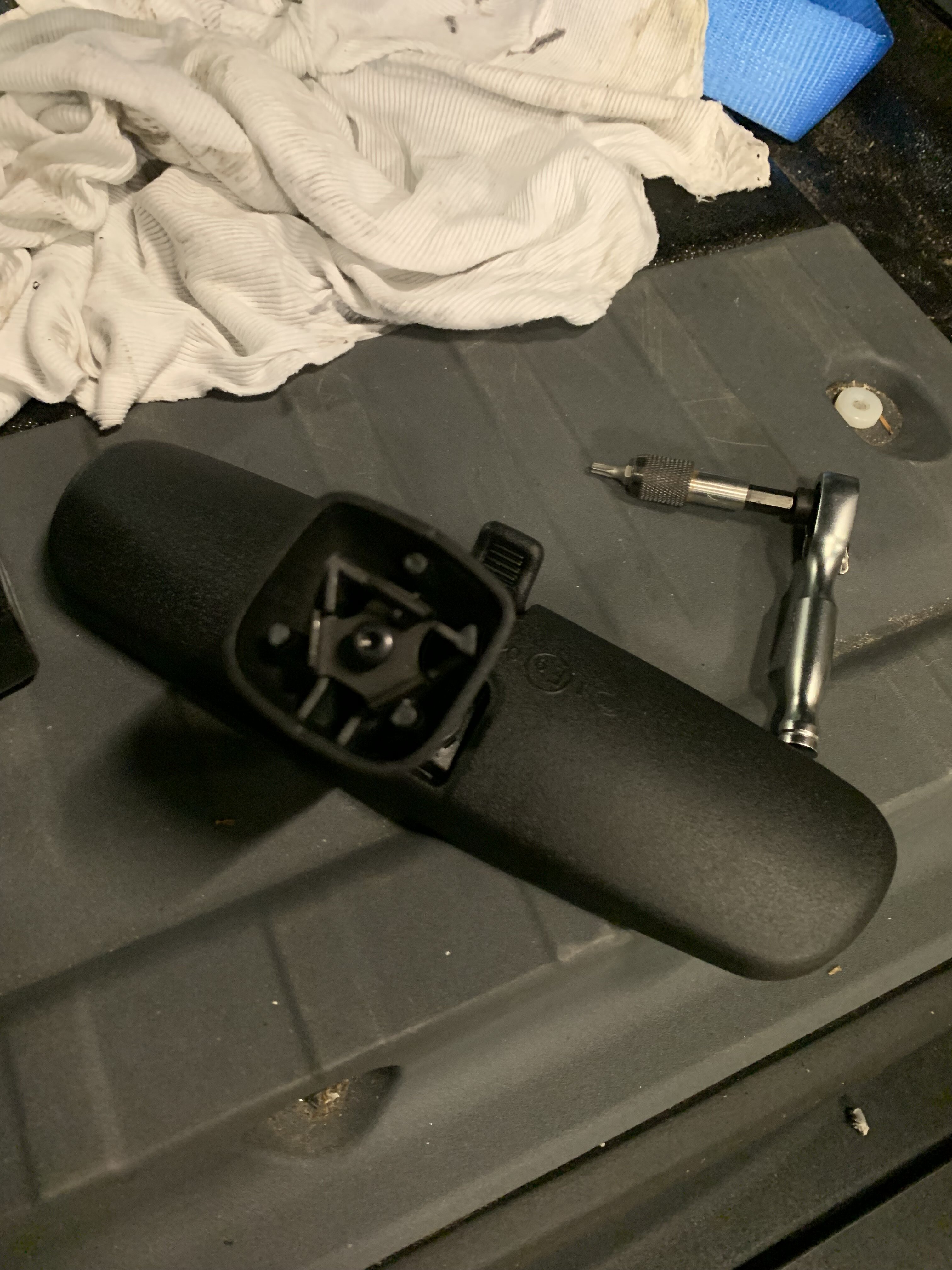

Did you completely replace the mirror or did you strap the screen over the top?

I purchased also the OEM mirror bracket, but it doesn’t fit.
You need a square connection foot (who is glued on the windshield) The one from the Grenadier is round. Also, this connection should be glued lower on the window, because now the wiring is bouncing to the upper switch panel and you can’t adjust the mirror in height. So indeed I finally strapped the mirror on the existing mirror. Which works just fine. It’s fixed and it has no vibrations.

To remove the mirror you need to turn it counter clockwise. It will pop off, but you need to put some force on it. To reattach, same procedure but clockwise.

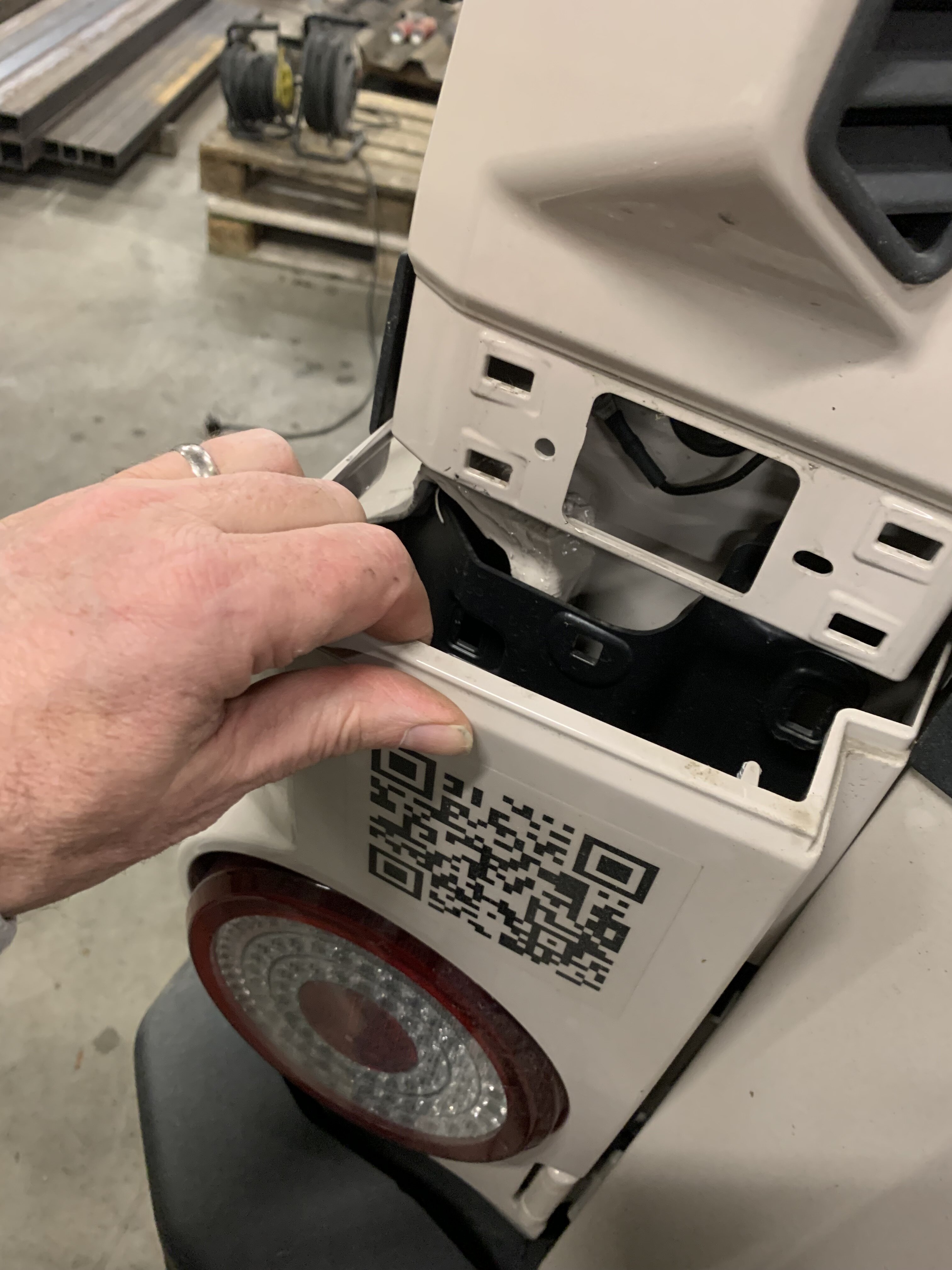

I had to drill a hole in the plastic cover where the camera is installed, but all the rest went smoothly without cutting or drilling.
You can all simply de assembled and re assemble with some simple tools. I did run the wiring using the left post at the end to reach the cable from the rear light. Made the connection with the rear light wire (It’s the Purple/orange one) than needed to disassemble the side skirts to reach the B pillar. Then up to the roof to the A pillar. But in between I could just put the wiring behind the rubber seals. Then disassemble the cover at the A pillar (It’s just one screw) to route the power cables down to the fuse box under the steering wheel.
I ordered also the hardwire kit to make the connection in the fuse box.
The connection from the camera to the rear light is just soldered together and then finished with some isolation tape.


Attachments

  • IMG_3713.jpeg
    2.3 MB · Views: 355
  • IMG_3714.jpeg
    2 MB · Views: 320
  • IMG_3715.jpeg
    1.4 MB · Views: 323
  • IMG_3716.jpeg
    1.2 MB · Views: 331
  • IMG_3770.jpeg
    1.3 MB · Views: 324
  • IMG_3771.jpeg
    927.7 KB · Views: 317
  • IMG_3773.jpeg
    1.3 MB · Views: 316
  • IMG_3776.jpeg
    1.6 MB · Views: 321

Voader - Oudersopzwier

Grenadier Owner
Local time
1:17 PM
Joined
Jun 28, 2023
Messages
310
Reaction score
601
Location
Belgium - Kortrijk
I also spotted this connector. No idea where this is for.
Maybe for the optional AC/DC inverter, or is it the wiring for the power switches (which I don't have) on the roof?


Attachments

  • IMG_3768.jpeg
    1.2 MB · Views: 311
  • IMG_3766.jpeg
    2.2 MB · Views: 349
Last edited:

Jean Mercier

GG#920
Grenadier Owner
Lifetime Supporter
Local time
1:17 PM
Joined
Sep 10, 2022
Messages
2,633
Reaction score
9,409
Location
Sint-Martens-Latem, Belgium
@Jean Mercier I also spotted a DAB receiver in the left corner. I thought, Jean, that you spotted one in the right back corner of the car? Meaning there ar two receiver?
I spotted the one at the left. But not the one at the right "yet", but saw something on other pictures on the forum. Therefore I don't know if there are two.


Jean Mercier

GG#920
Grenadier Owner
Lifetime Supporter
Local time
1:17 PM
Joined
Sep 10, 2022
Messages
2,633
Reaction score
9,409
Location
Sint-Martens-Latem, Belgium
I also spotted this connector. No idea where this is for.
Maybe for the optional AC/DC inverter, or is it the wiring for the power switches (which I don't have) on the roof?
It is not for the power switches on the roof, because I have them and I have also this hanging connector. I made some measurements on the connector here:

Therefore probably BCM (Body Control Module) signals for the optional smart invertor, but this is a guess.


Voader - Oudersopzwier

Grenadier Owner
Local time
1:17 PM
Joined
Jun 28, 2023
Messages
310
Reaction score
601
Location
Belgium - Kortrijk
Optional sidesteps are loaded. Grenadier a bit more in beast modus now.
Just a tip for people who are mounting the Urban steps. Start with the front, then the back. Otherwise it will be difficult to get the bolts in the front position at there place. There is very limited play. Just saying.


Attachments

  • IMG_3799.jpeg
    1.4 MB · Views: 366

ADVAW8S

Global Grenadier 0044
Lifetime Supporter
Founding Guard
Local time
4:17 AM
Joined
Oct 11, 2021
Messages
1,991
Reaction score
2,915
Location
Kirkland, WA, USA
I purchased also the OEM mirror bracket, but it doesn’t fit.
You need a square connection foot (who is glued on the windshield) The one from the Grenadier is round. Also, this connection should be glued lower on the window, because now the wiring is bouncing to the upper switch panel and you can’t adjust the mirror in height. So indeed I finally strapped the mirror on the existing mirror. Which works just fine. It’s fixed and it has no vibrations.

To remove the mirror you need to turn it counter clockwise. It will pop off, but you need to put some force on it. To reattach, same procedure but clockwise.

I had to drill a hole in the plastic cover where the camera is installed, but all the rest went smoothly without cutting or drilling.
You can all simply de assembled and re assemble with some simple tools. I did run the wiring using the left post at the end to reach the cable from the rear light. Made the connection with the rear light wire (It’s the Purple/orange one) than needed to disassemble the side skirts to reach the B pillar. Then up to the roof to the A pillar. But in between I could just put the wiring behind the rubber seals. Then disassemble the cover at the A pillar (It’s just one screw) to route the power cables down to the fuse box under the steering wheel.
I ordered also the hardwire kit to make the connection in the fuse box.
The connection from the camera to the rear light is just soldered together and then finished with some isolation tape.
@Stu_Barnes maybe talk with wolfbox to see if a adapter for grenadier is in works for permanent mount to the front windshield.


Stu_Barnes

Grenadier Owner
Fixer & General Dogsbody
Local time
4:17 AM
Joined
Aug 15, 2021
Messages
2,648
Reaction score
8,840
Location
Los Angeles
@Stu_Barnes maybe talk with wolfbox to see if a adapter for grenadier is in works for permanent mount to the front windshield.
I reached out to them and we have a discount for forum members. I was waiting to get my hands on a grenadier to give them the spec to develop a mount :).


Voader - Oudersopzwier

Grenadier Owner
Local time
1:17 PM
Joined
Jun 28, 2023
Messages
310
Reaction score
601
Location
Belgium - Kortrijk
@Stu_Barnes maybe talk with wolfbox to see if a adapter for grenadier is in works for permanent mount to the front windshield.
Well, if I ever have to replace my windshield (It already has a dent from a stone chipping on the German Autobahn). I ask to change this fixation, so I still can use the OEM bracket.


Cheshire cat

Grenadier Owner
Lifetime Supporter
Local time
12:17 PM
Joined
May 30, 2022
Messages
1,938
Reaction score
4,600
Location
Cheshire, UK
I reached out to them and we have a discount for forum members. I was waiting to get my hands on a grenadier to give them the spec to develop a mount :).

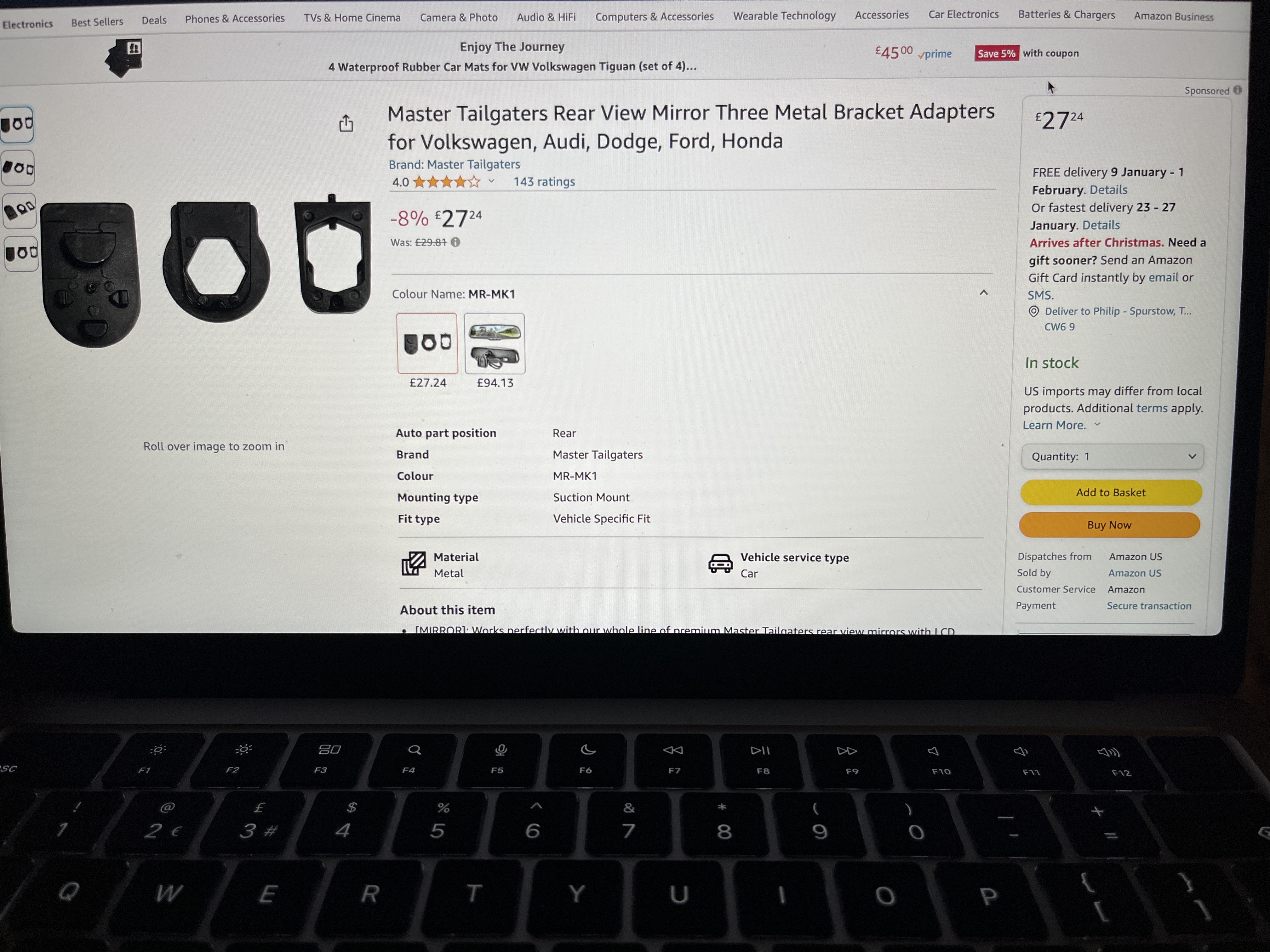

How about this?
