Recommended tools

[Tomdoc]

Hi all,

Now we are getting our vehicles, what extra tools have you invested in to allow you to take it apart/gain access to stuff or simply have in the vehicle. For instance I am eternally grateful to this forum for pointing out the IG has a lot of torx bolts!! I always carry a good tool kit but my torx options were pitiful - not anymore!



[DCPU]

I had to invest in these to get the large size required to move the rear seats:

Laser 5514 Tamperproof Star Bit Set 13pc | Euro Car Parts

Laser 5514 Tamperproof Star Bit Set 13pc at the lowest UK prices from Euro Car Parts UK’s No.1 for Car Accessories, Car Styling & Car Care. Buy today Online, In store or by Phone + Branches Nationwide – Next Day UK Free Delivery.

www.eurocarparts.com



[LeftCoastOverland]

I had to invest in these to get the large size required to move the rear seats:
View attachment 7821690

Laser 5514 Tamperproof Star Bit Set 13pc | Euro Car Parts

Laser 5514 Tamperproof Star Bit Set 13pc at the lowest UK prices from Euro Car Parts UK’s No.1 for Car Accessories, Car Styling & Car Care. Buy today Online, In store or by Phone + Branches Nationwide – Next Day UK Free Delivery.

www.eurocarparts.com

How much of the rear seat did you remove?
I'd like to be able to take out the 60% portion, and retain the 40% for a child carseat.
Also, How much weight do you estimate those seats are?
Thanks!



[DCPU]

How much of the rear seat did you remove?

Completely unbolted from the floor so that I could tilt them forwards from the legs/base to get to the rear bolts of the underseat trim.

Post in thread 'Removing the underseat trim panels / accessing or removing the batteries' https://www.theineosforum.com/threa...moving-the-batteries.12412649/post-1333201304

I'd like to be able to take out the 60% portion, and retain the 40% for a child car seat.

I haven't looked at splitting the seat bases, there are some bolts there, so it may be doable.

Also, How much weight do you estimate those seats are?

That's a difficult question. They certainly are substantial. I could be well out but I'd guess 35kg to 40kg.



[LeftCoastOverland]

Completely unbolted from the floor so that I could tilt them forwards from the legs/base to get to the rear bolts of the underseat trim.

Post in thread 'Removing the underseat trim panels / accessing or removing the batteries' https://www.theineosforum.com/threa...moving-the-batteries.12412649/post-1333201304

I haven't looked at splitting the seat bases, there are some bolts there, so it may be doable.

That's a difficult question. They certainly are substantial. I could be well out but I'd guess 35kg to 40kg.

Ok thanks for the info!



[McPharmer II]

Sonething like this, if you want to do some extra wiring:

TECPO Innenraum Werkzeug Satz Türverkleidung Zierleistensatz

Autoteile-Werkzeuge.de - Autoersatzteile und Werkzeuge günstig kaufen ✔ Top Qualtität ✔ Faire Preise ✔ Schneller Versand

www.autoteile-werkzeuge.de



[Krabby]

Just a bump here.

Besides a good Torx set and the requisite 10mm things, what can we add to this list?



[ECrider]

Just a bump here.

Besides a good Torx set and the requisite 10mm things, what can we add to this list?

32mm socket for the oil filter, if not got one already.



[DenisM]

Flexible magnetic pick-up tool...



[bigleonski]

Flexible magnetic pick-up tool...

What did you drop?



[DenisM]

What did you drop?

Which time?
...usually my concentration!
Rule 1. Don't suddenly decide to "play" under the bonnet after 5pm on a weekend when the shops have closed...



[RockyCam]

While installing a side light near the roof, I realized the fasteners attaching the round bars are not #TORX. Luckily I stopped before damaging the fastener. Until a few days ago I did not know about #TorxPlus, but a T27 TORX PLUS Fastener is used (forgive me if someone has mentioned this already, I searched but was unable to find Torx Plus mentioned). There are several good reasons why Ineos selected TORX PLUS, here are a few links if you are curious:

https://www.stanleyengineeredfastening.com/-/media/web/sef/resources/docs/other/torx_plus_brochure.pdf

BITS, SPECIALTY SOCKETS & SETS

With ice in your veins and steel in your hands, there’s nothing you can’t fix. All you need are SK Professional Tools: Premium quality, precision-crafted.

sktools.com



[TheDocAUS]

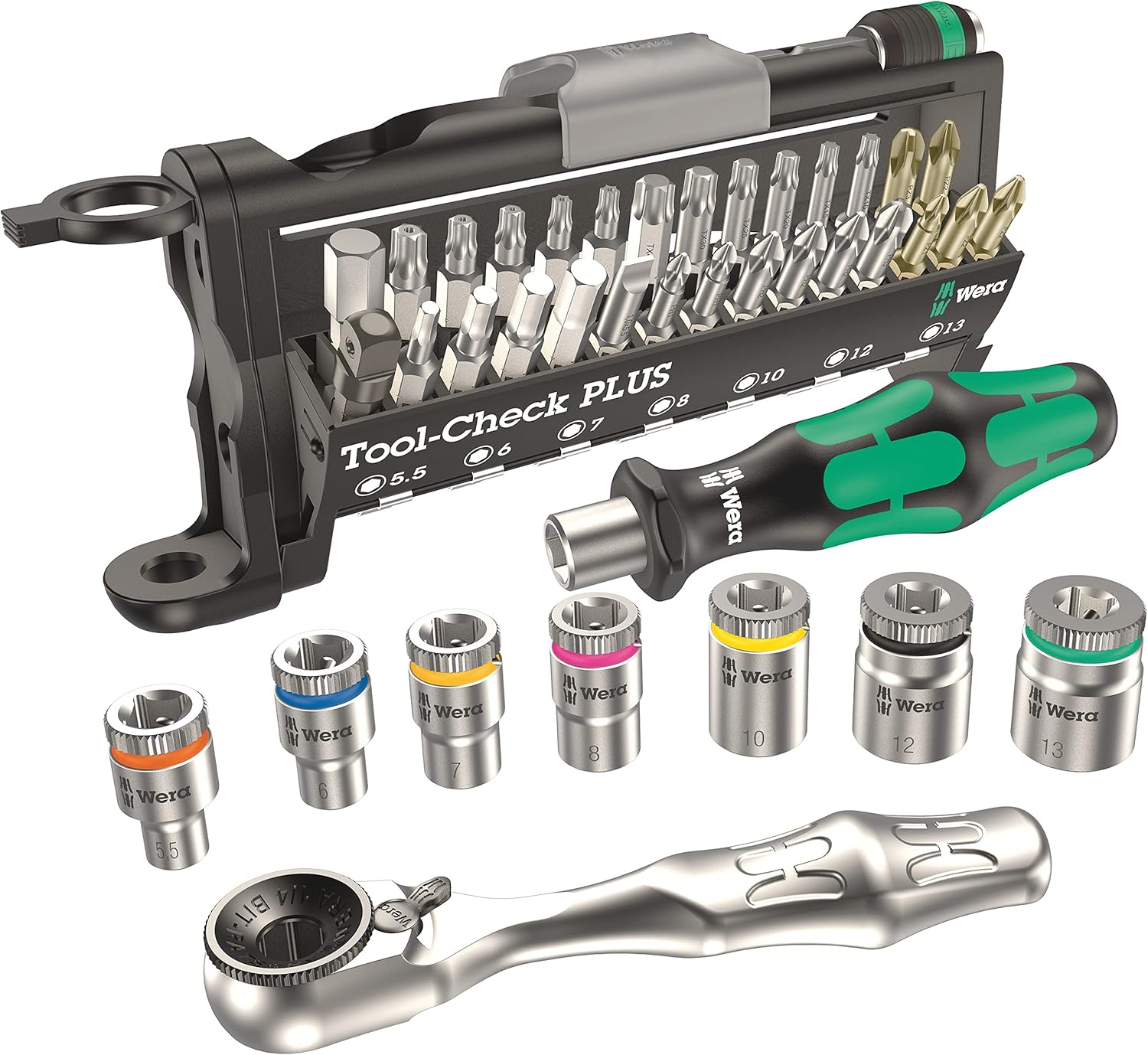

So far, the most used toolkit on the Grenadier is the Wera WER05056490001 Tool-Check PLUS Bit Ratchet Kit (39 Pieces). It is used most times I work on the car or roofrack.



[DaBull]

So far, the most used toolkit on the Grenadier is the Wera WER05056490001 Tool-Check PLUS Bit Ratchet Kit (39 Pieces). It is used most times I work on the car or roofrack.

HI DocAUS, Does that kit include include Tork+ fittings to both remove the Tork+ screws holding on the brackets that hold the aluminum roof tubes?
I have purchased the Buzz Overland Hinge Steps and will need to remove the door hinge screws. Do you know if those are Tork+ screws and if so what size and if the kit above includes that driver? DaBull



[TheDocAUS]

HI DocAUS, Does that kit include include Tork+ fittings to both remove the Tork+ screws holding on the brackets that hold the aluminum roof tubes?
I have purchased the Buzz Overland Hinge Steps and will need to remove the door hinge screws. Do you know if those are Tork+ screws and if so what size and if the kit above includes that driver? DaBull

I have a full size Rhino Pioneer Platform and my work has been adding, adjusting or removing things from the roofrack, not the rack itself.

There is some variation in what screws/bolts INEOS used, some have torx screws on the trimming around the doors, mine has hex heads. I have not touched the door hinges, but I just checked mine. My external facing door hinges are Torx T50 screws/bolts. The Wera kit does not have a T50.

I also bought a larger set of Torx sockets like this (making sure they fitted my existing socket sets). Mine was a no name Taiwanese made Torx set:

I need both sets for the Grenadier, but I use the Wera more often. The larger Torx socket set has the T50. The Wera set is too small to use on door hinges, both in terms of Torx socket size and being able to loosen or tighten door hinge screws/bolts.

I started with the Wera set and then got the second set when I realised I needed them as well.



[Tazzieman]

The torx bit for removing the propshaft is a must have.



[ECrider]

The torx bit for removing the propshaft is a must have.

you know what size Tazzie, otherwise will have a look and report back after airport run.



[Tazzieman]

you know what size Tazzie, otherwise will have a look and report back after airport run.

T45 with 1/4"socket end



[Michael H.]

T45 with 1/4"socket end

I know nothing about tools, but I like to carry stuff others may need to help me.

Is this it?

https://www.australianonlinecarparts.com.au/t45-x-1-4-dr.-stubby-torx-r-impact-socket-t-e-tool



[Tazzieman]

I know nothing about tools, but I like to carry stuff others may need to help me.

Is this it?

https://www.australianonlinecarparts.com.au/t45-x-1-4-dr.-stubby-torx-r-impact-socket-t-e-tool

Listen to the words of actor Barry Humphries at the 36 second mark

View: https://youtu.be/JOX_oeikDJY?si=2AUqF1HTzpifAIi0
