Roof rack better in the gutter or on the grab rails?

DenisM

Grenadier Owner
Lifetime Supporter
Local time
9:18 PM
Joined
Jan 26, 2022
Messages
2,208
Reaction score
4,406
Location
Brisbane, Queensland Australia
Anyone else in Aus who has taken delivery of their Grenadier care to tap on the bracket with a coin or screwdriver (or give ‘em a bite with your pearly whites) to confirm they are some kind of metal?
in lieu of a bite ;)... a "subtle" indentation with a small screwdriver suggests they're formed from some sort of high density polymer material... I'm not up on my polymer chem. these days to identify exactly what sort of polymer it might be. The bar probably aluminium alloy. The concave liner of the "Alpine" cavity however appears to be a vinyl material.

Last edited:

Shopkeep

Grenadier Owner
Local time
10:18 PM
Joined
Apr 30, 2022
Messages
731
Reaction score
1,758
Location
Australia
in lieu of a bite ;)... a "subtle" indentation with a small screwdriver suggests they're formed from some sort of high density polymer material... I'm not up on my polymer chem. these days to identify exactly what sort of polymer it might be. The bar probably aluminium alloy. The concave liner of the "Alpine" cavity however appears to be a vinyl material.
Would you believe thermoplastic or polymer coated metal????


Black Sheep

Grenadier Owner
Supporting Vendor
Local time
12:18 PM
Joined
Feb 6, 2023
Messages
36
Reaction score
250
Location
Switzerland
I have pulled them off to install my uhf antenna, pretty sure they are plastic.i was thinking of getting some metal ones fabricated...
They are not, but if you like we can produce this part for you in military grade aluminium, stainless steel or even titanium.


Black Sheep

Grenadier Owner
Supporting Vendor
Local time
12:18 PM
Joined
Feb 6, 2023
Messages
36
Reaction score
250
Location
Switzerland
I don't want to withhold this picture from you.
Here we have loaded a single element with 240kg for test purposes. From 180kg the panel starts to bend minimal. With a load of 240kg it achieves a deflection of 4mm.
We install 2 elements as standard, optionally also 3 elements. We are therefore far above the required stability.
If we have customers who are struggling with the platform remaining on the plastic rails, we can raise the platform 5mm with simple inserts.

Please don't forget, we are always in very close contact with our customers and also respond directly to their experiences and feedback and implement them where we can.

Only with the combination of our 25 years of experience in off-road and overlanding, our experience as mechanical engineers and the experiences of our customers worldwide, we can create new and even better products.

Foto 21.07.23, 10 08 58.jpg


OzyGrenie

Grenadier Owner
Local time
10:18 PM
Joined
Sep 10, 2022
Messages
106
Reaction score
140
Location
Canberra Australia
I note the key information missing in this discssusion is the reason why you dont just depend on mounting a roof rack just to the gutter, like most of current 4x4's.
You need to question why did INEOS put a flat roof on the Grenadier with supports down the length of the roof?
Why does LeTECH and Black sheep ( Germany ) both utilise the Grenie grab handle bolts for additonal support for a roof rack? They explained their roof racks use those grab handle factory fixings that reduces the overall roof structure and factory load specifications.

Last edited:

DCPU

Grenadier Owner
Local time
11:18 AM
Joined
Jul 27, 2022
Messages
6,005
Reaction score
13,344
There is a misconception that the BSI rack is attached to the lashing tube.
The photos make this easy to imagine that they do:



Then there's this:
If we raise the beam, we get away from the plastic strips and shift the entire load to the outer tubes.

Post in thread 'Roof racks, Head up displays and dash cams etc. Any after market accessory.' https://www.theineosforum.com/threa...ter-market-accessory.12410499/post-1333200281

Last edited:

Gormanchov

Grenadier Owner
Local time
10:18 PM
Joined
Sep 10, 2022
Messages
11
Reaction score
23
Location
Australia
The photos make this easy to imagine that they do:
View attachment 7821237
View attachment 7821236

Then there's this:


Post in thread 'Roof racks, Head up displays and dash cams etc. Any after market accessory.' https://www.theineosforum.com/threa...ter-market-accessory.12410499/post-1333200281
I thought the same thing until I saw one their more recent videos. The idea of using the grab handle fixing points to secure an awning is something I'm going to investigate once I get my hands on the vehicle.


jb_hamon

Grenadier Owner
Local time
12:18 PM
Joined
Nov 18, 2021
Messages
75
Reaction score
190
Location
France

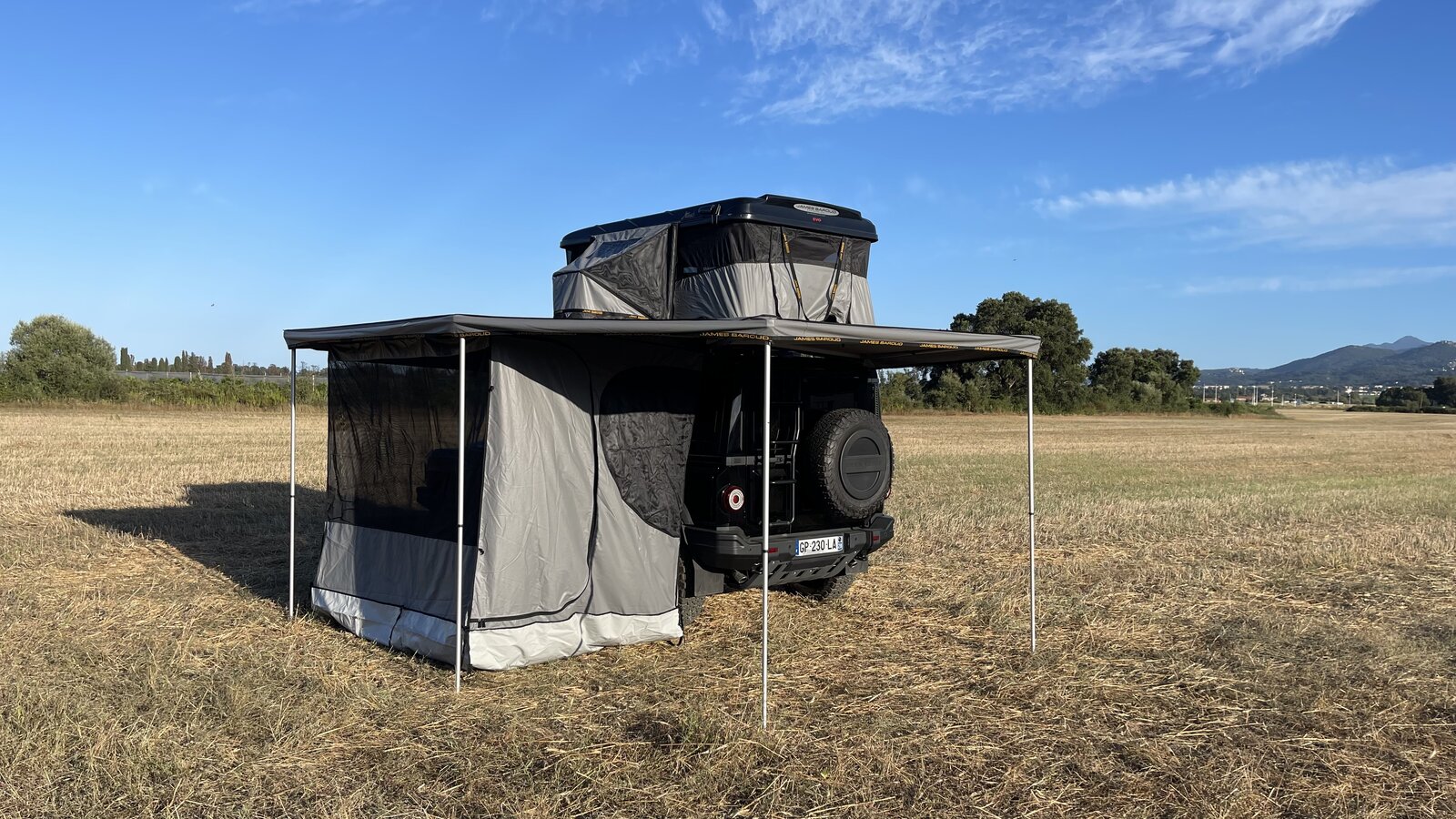

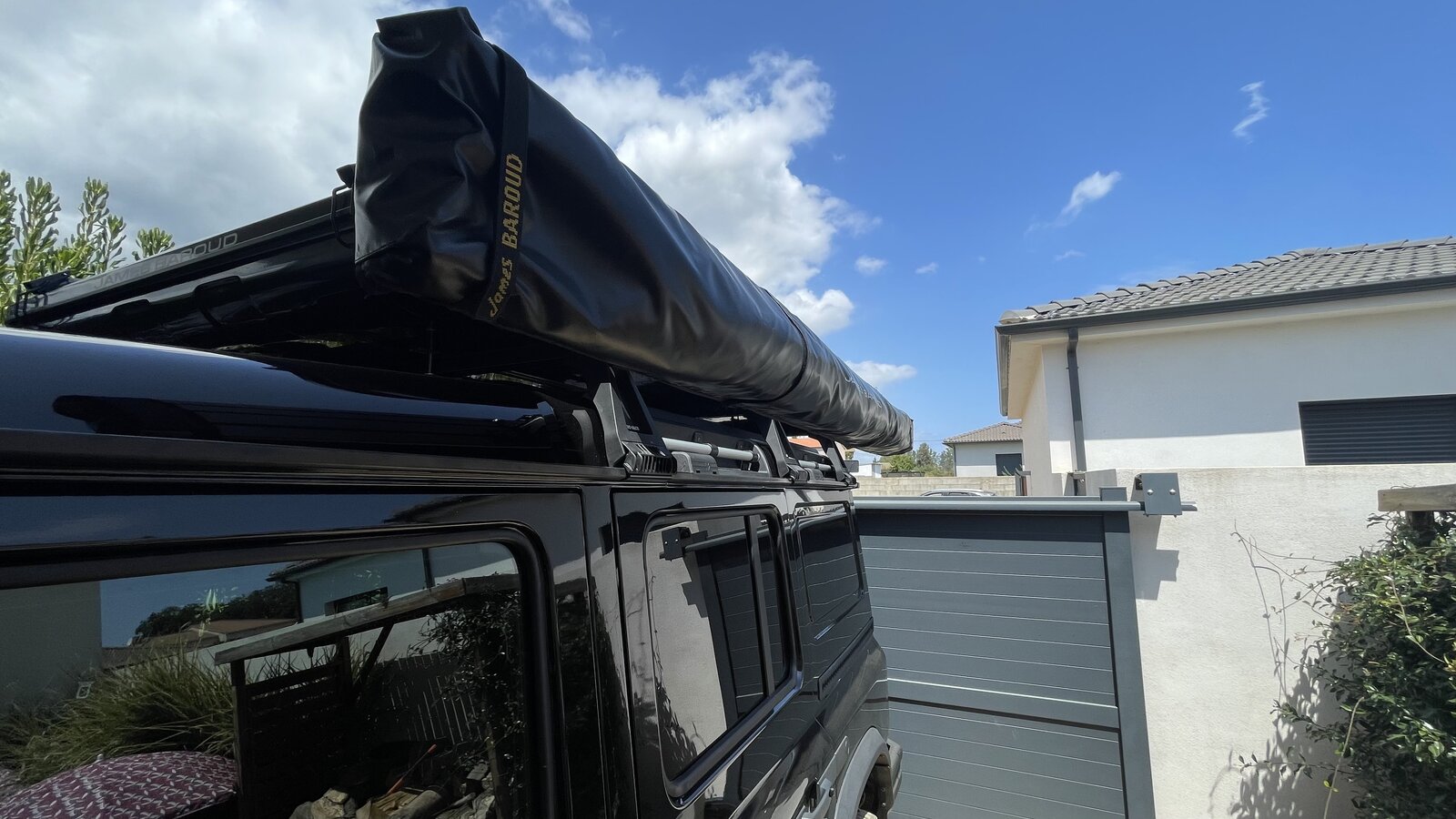

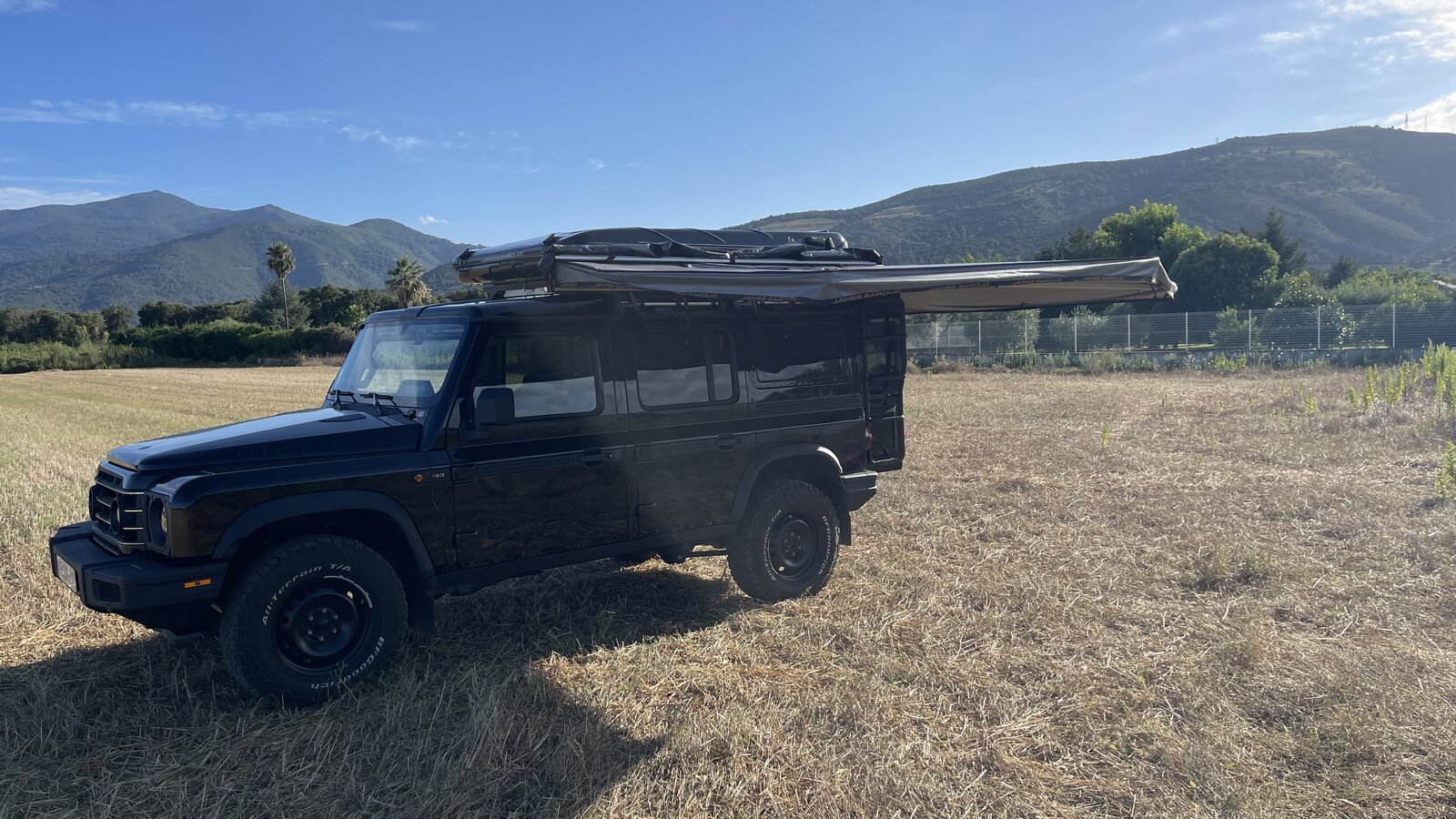

Here is the final result.
Bars are Rhino Rack Heavy Duty 1800mm
Bar legs are Rhino Rack RL210DS8
Roof tent is James Baroud Evasion EVO XXL
Awning is James Baroud Falcon 270°

No gutter bending. As explained here
https://www.theineosforum.com/threa...ter-market-accessory.12410499/post-1333199557
The only modification I made is insert a small piece of HDPE between the base of the legs and the outer edge of the gutter to maintain the leg as close as possible to the inner side of the gutter.


Attachments

  • IMG_4943.jpeg
    264.3 KB · Views: 62
  • IMG_4944.jpeg
    225.5 KB · Views: 67
  • IMG_4945.jpeg
    268.1 KB · Views: 66
  • IMG_4937.jpeg
    369.7 KB · Views: 66
  • IMG_4939.jpeg
    420.1 KB · Views: 60
  • IMG_4938.jpeg
    448.6 KB · Views: 56
  • IMG_4940.jpeg
    390.6 KB · Views: 56
  • IMG_4942.jpeg
    351.6 KB · Views: 54
