Loadspace Drainage Plug

[DCPU]

So, following on from these two threads:

@Jean Mercier Sleeping in the car

Pictures say more than words, but although I prefer to sleep in my tent, I found a solution to sleep in my car, without dismounting the rear seat. I bought (for my tent) a Coleman Maxi Comfort inflatable bed, dimensions 198 x 82 x 22 cm, and this is prefect for the inside of the Grenadier! The...

www.theineosforum.com

https://www.theineosforum.com/threads/repair-of-water-draining-cap-plug.12412196/#post-1333181801

The online Owner's manual (page 202) states "Remove the trim panel located just inside the rear loadspace entrance. This will give access to the rear drain plug inside the loading area." By this, I thought they were referring to either trim panels immediately behind the wheel arches. They were not.

The hard copy Owner's Manual (page 248) refers (correctly) to removing the rear tailgate scuff panel to give access to the rear loadspace drainage plug.

So for me, that means taking out these two parts:

Leaving this:



[DCPU]

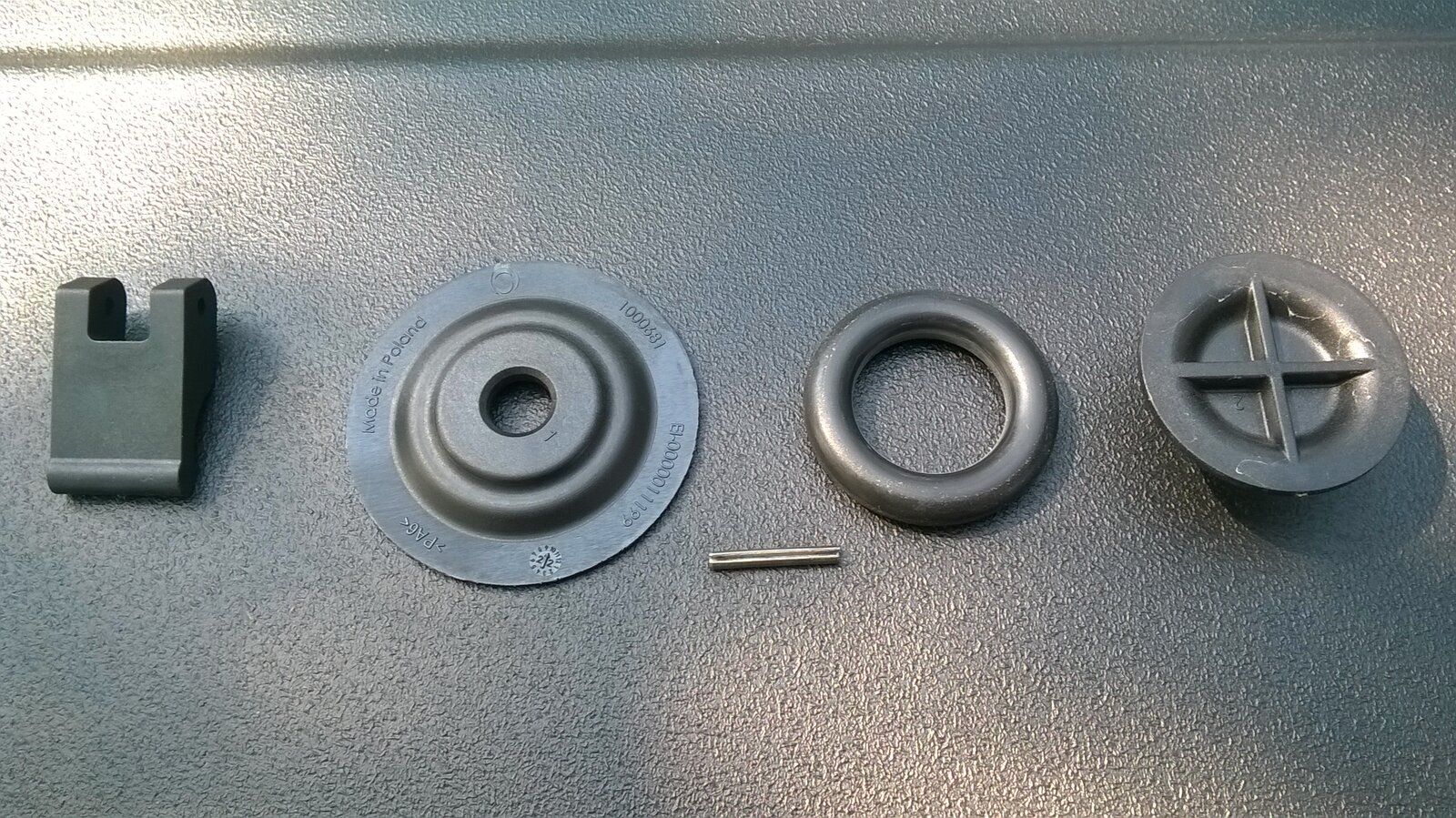

The plug itself, as described by @Jean Mercier does seem to suffer from a very loose spring pin and soon falls apart:

If you loose a pin then it's 20mm long and approx 2.75mm diameter:

However, it's an easy fix to go around them all now (I'm assuming they will all be loose) and just slide partially them out, adjust outwards (widen) with a tip of a screwdriver and press them back in to be the interference fit they actually should be:



[DCPU]

I should have said the scuff panel comes out by removing the 8 small plastic thumb wheel nuts.



[DCPU]

i should add whilst doing this I found two more features:

Another earthing fixture showing poor installation technique (located inside the removeable trim panel on the right hand side of the loadspace):

And what looks line a broken trim clip located underneath the scuff panel on the left hand side of the loadspace:



[Jean Mercier]

The plug itself, as described by @Jean Mercier does seem to suffer from a very loose spring pin and soon falls apart:View attachment 7815676View attachment 7815678
View attachment 7815679View attachment 7815680View attachment 7815681

If you loose a pin then it's 20mm long and approx 2.75mm diameter:
View attachment 7815682View attachment 7815683

However, it's an easy fix to go around them all now (I'm assuming they will all be loose) and just slide partially them out, adjust outwards (widen) with a tip of a screwdriver and press them back in to be the interference fit they actually should be:
View attachment 7815684View attachment 7815685

Oooh shit, I removed some days ago the whole carpet, but not the "scuff panel assy", and thought "no drain plug"! And thought OK, the other plugs are lower, therefore this was on purpose!

Why is it so complicated?

Anyway, you really are a champion @DCPU

[EDITED] by the way, why is your status still "contract signed" instead of "Owner", did you steal a Grenadier from somebody?



[DCPU]

I have mine on sale or return - I didn't ask for a test drive, just a cumulative number of hours to inspect at my own pace. wink.

Complicated - yes, I didn't realise that the printed copy of the Owner's Manual is right for some things and the online version is wrong; and for other things the online version is correct and the printed copy wrong. Then for some things they are both right; and for other things both are wrong!



[ECrider]

Good sleuthing @DCPU and good photos so the rest of us have a very good idea before attempting.



[DCPU]

Good sleuthing @DCPU and good photos so the rest of us have a very good idea before attempting.

We have @Jean Mercier to thank for the tip regarding the self destructing drainage plugs. I'm absolutely sure I'd have lost the pin for mine without him posting of his experience first.



[Jean Mercier]

We have @Jean Mercier to thank for the tip regarding the self destructing drainage plugs. I'm absolutely sure I'd have lost the pin for mine without him posting of his experience first.

I hope my son is still searching for the pin in his garden in Hungary ... but I doubt about it



[Jean Mercier]

I hope my son is still searching for the pin in his garden in Hungary ... but I doubt about it

He is still searching that nail I stole from him to replace that pin ...



[DCPU]

I hope my son is still searching for the pin in his garden in Hungary ... but I doubt about it

tell him to take his shoes and socks off - he'll soon find it...



[emax]

At the big airports they have cars with a big magnetic crossbar underneath hanging very close to the surface, and they drive over the runways and taxiways. They always come back with a large amount of scrap iron hanging from the magnet.

So find a 1 m long magnetic bar and scan the garden.
