Ext 1 vs Ext 6

[AZGrenadier]

Hi all, I have done a search hear and remember seeing where the power lead us identified but can anyone definitely say which one is Ext1 vs Ext6 under the hood. I have found both as they are right next to each other, just wondering which is which. There is one flat along the fender line and another slightly inboard vertical. If I remember right the vertical one is the 25a but I can’t seem to find that verification.

Thanks



[TheDocAUS]

The 10 amp circuit uses the thinner wire gauge of the two. One is 10 amp, the other 25 amp. Ext1 is the 10amp circuit.

Is it Ext5 rather than 6?



[G-Tank]

Hi all, I have done a search hear and remember seeing where the power lead us identified but can anyone definitely say which one is Ext1 vs Ext6 under the hood. I have found both as they are right next to each other, just wondering which is which. There is one flat along the fender line and another slightly inboard vertical. If I remember right the vertical one is the 25a but I can’t seem to find that verification.

Thanks

Where are the EXT 1 wires located? Do share a pic if you have one.



[TheDocAUS]

Where are the EXT 1 wires located? Do share a pic if you have one.

Photo is on the forum, also Rok Dr guide was well, item 10



[G-Tank]

Photo is on the forum, also Rok Dr guide was well, item 10

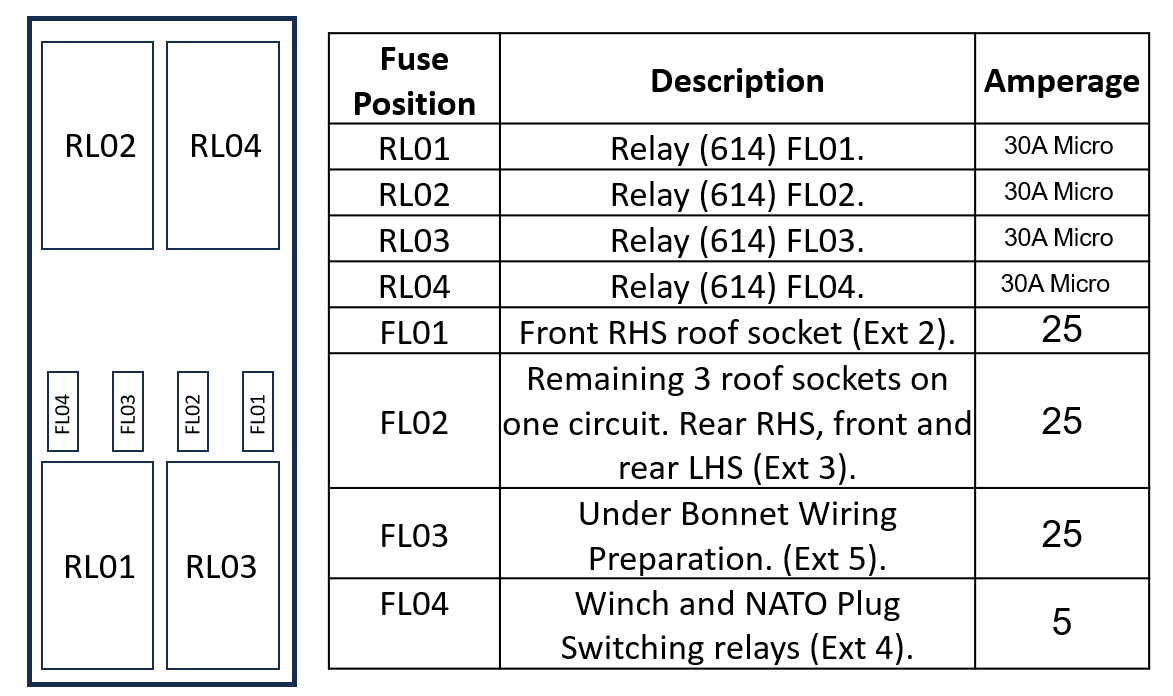

View attachment 7865773

Sweet. This version of Owner's Manual is Epic !! #MustHave



[Jean Mercier]

Where are the EXT 1 wires located? Do share a pic if you have one.

@Rok_Dr guide should be corrected: the EXT1 and EXT5 wiring preparation outlets are located at the other side of the bonnet for LHD (Left Hand Drive) vehicles.

My post here shows the location:

Aux sockets.

Has anybody found aux outlets in footwells,under bonnet and fusebox.Had a quick look but cant see anything obvious.Do you have to remove covers.Quick start guide very vague not a good picture.

www.theineosforum.com

Or this image:

20230627_122730 two out of two.jpg

www.theineosforum.com



[Rok_Dr]

@Rok_Dr guide should be corrected: the EXT1 and EXT5 wiring preparation outlets are located at the other side of the bonnet for LHD (Left Hand Drive) vehicles.

My post here shows the location:

Aux sockets.

Has anybody found aux outlets in footwells,under bonnet and fusebox.Had a quick look but cant see anything obvious.Do you have to remove covers.Quick start guide very vague not a good picture.

www.theineosforum.com

Or this image:

20230627_122730 two out of two.jpg

www.theineosforum.com

Thanks @Jean Mercier I’ll fix it in the next edition.

Cheers Steve



[G-Tank]

@Rok_Dr guide should be corrected: the EXT1 and EXT5 wiring preparation outlets are located at the other side of the bonnet for LHD (Left Hand Drive) vehicles.

My post here shows the location:

Aux sockets.

Has anybody found aux outlets in footwells,under bonnet and fusebox.Had a quick look but cant see anything obvious.Do you have to remove covers.Quick start guide very vague not a good picture.

www.theineosforum.com

Or this image:

20230627_122730 two out of two.jpg

www.theineosforum.com

Thanks for the heads up. Now I know why I couldn't find any wires on the passenger side.

Just to confirm, there should be only 1 set of open wires on the Driver side, which is the EXT 1?
I only found 1 set of wires.



[Jean Mercier]

Thanks for the heads up. Now I know why I couldn't find any wires on the passenger side.

Just to confirm, there should be only 1 set of open wires on the Driver side, which is the EXT 1?
I only found 1 set of wires.

Yes, right, unless you have the extended electrical setup (double battery, etc.)



[G-Tank]

Yes, right, unless you have the extended electrical setup (double battery, etc.)

Thanks. I do not have the double battery setup.
Now to figure out how to connect the EXT 1 to the off Road lights.



[Rok_Dr]

As its going to be a few weeks before the next manual update is released I've posted updated bonnet pictures in the following post

https://www.theineosforum.com/threa...al-supplement.12415655/page-4#post-1333289204

Cheers
Steve
