USB C port Wattage?

LeftCoastOverland

Grenadier Owner
Lifetime Supporter
Local time
9:41 PM
Joined
Jun 21, 2023
Messages
331
Reaction score
539
Location
Port Fairy VIC, Australia
Anyone here know how many watts are coming out of the USB C port? Specifically wondering if I’d be able to charge a laptop off that via USB C in.

Thanks!


TheDocAUS

Grenadier Owner
Lifetime Supporter
Local time
10:41 PM
Joined
Mar 8, 2023
Messages
2,523
Reaction score
4,423
Location
Eromanga
The amp rating of the 3 charging circuits are in the right column. Cockpit Fuse Box.



Eric

Grenadier Owner
Lifetime Supporter
Local time
11:41 AM
Joined
Oct 27, 2022
Messages
2,406
Reaction score
4,266
Location
Scotland
Anyone here know how many watts are coming out of the USB C port? Specifically wondering if I’d be able to charge a laptop off that via USB C in.

Thanks!
I though the range of outputs for USB and c ports in cars was 24w and a fast charger port was 36w.


anand

Photo Contest Winner
Forum Moderator
Grenadier Owner
Lifetime Supporter
Local time
6:41 AM
Joined
Mar 12, 2023
Messages
3,131
Reaction score
5,086
Location
Maryland

parb

Grenadier Owner
Lifetime Supporter
Local time
3:41 AM
Joined
Sep 10, 2023
Messages
1,085
Reaction score
1,637
Location
Silicon Valley, CA, USA

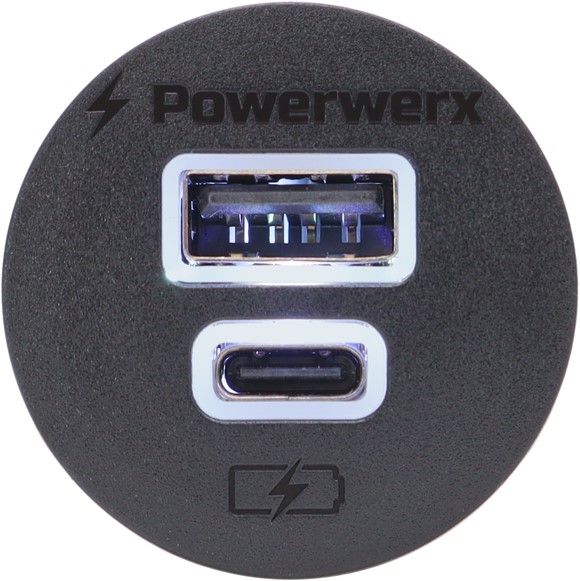

I've been eyeing this. Looks legit and I love both qc3 and pd + qc4 standards.


LeftCoastOverland

Grenadier Owner
Lifetime Supporter
Local time
9:41 PM
Joined
Jun 21, 2023
Messages
331
Reaction score
539
Location
Port Fairy VIC, Australia
I've been eyeing this. Looks legit and I love both qc3 and pd + qc4 standards.
One issue I see with this unit is the length of the cylinder for the panel mount at 3.25 inches not including wiring terminals.
If planning to mount to the footwell panels (Interior Aux 1 & 2) I feel it may be too long and interfere with the body of the vehicle. I’m basing my thoughts off of photos of those panels only. I haven’t got a vehicle in hand to work on yet.


parb

Grenadier Owner
Lifetime Supporter
Local time
3:41 AM
Joined
Sep 10, 2023
Messages
1,085
Reaction score
1,637
Location
Silicon Valley, CA, USA
Yeah, I don't know mounting location. Need to get my truck first.


LeftCoastOverland

Grenadier Owner
Lifetime Supporter
Local time
9:41 PM
Joined
Jun 21, 2023
Messages
331
Reaction score
539
Location
Port Fairy VIC, Australia

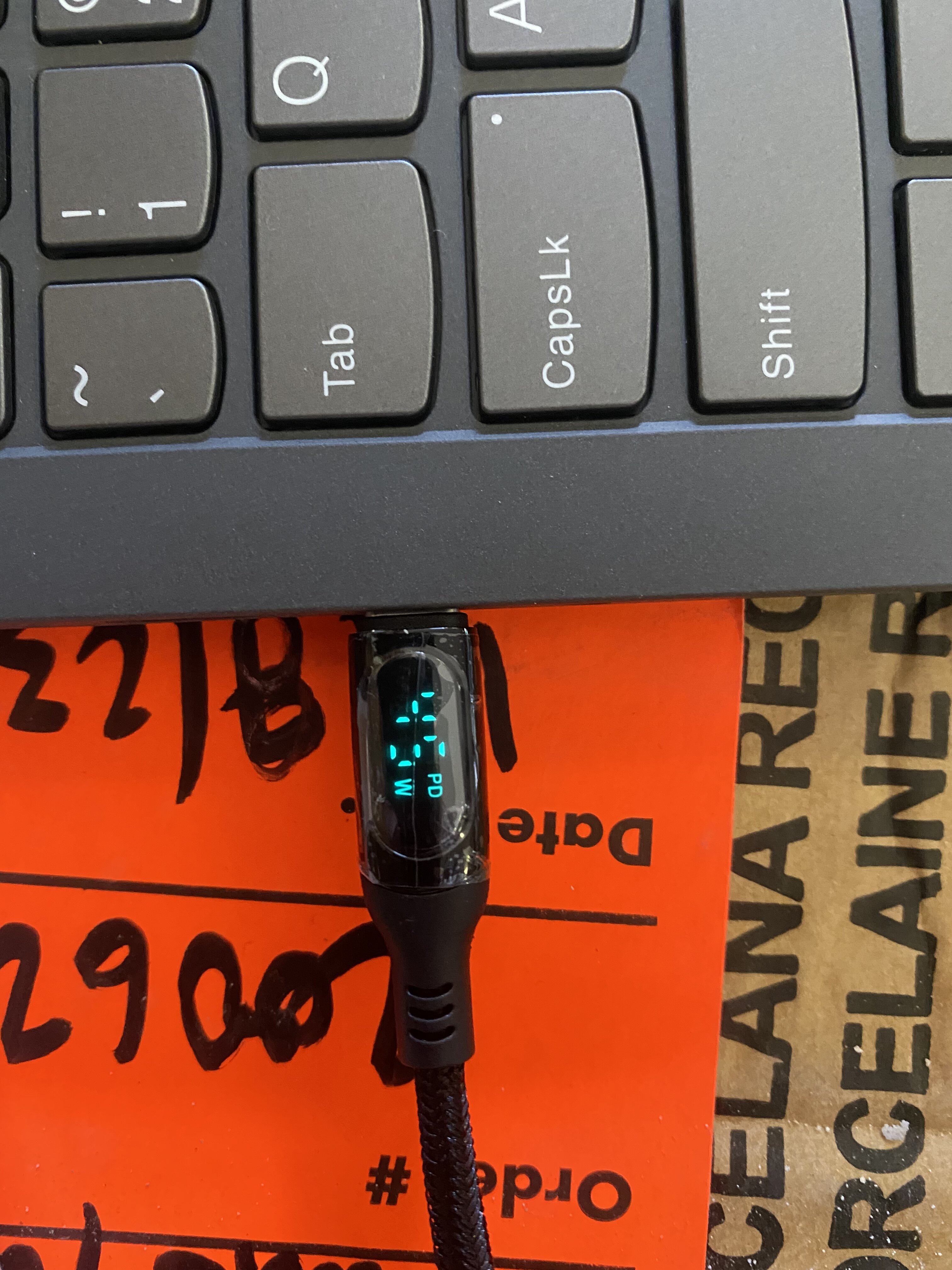

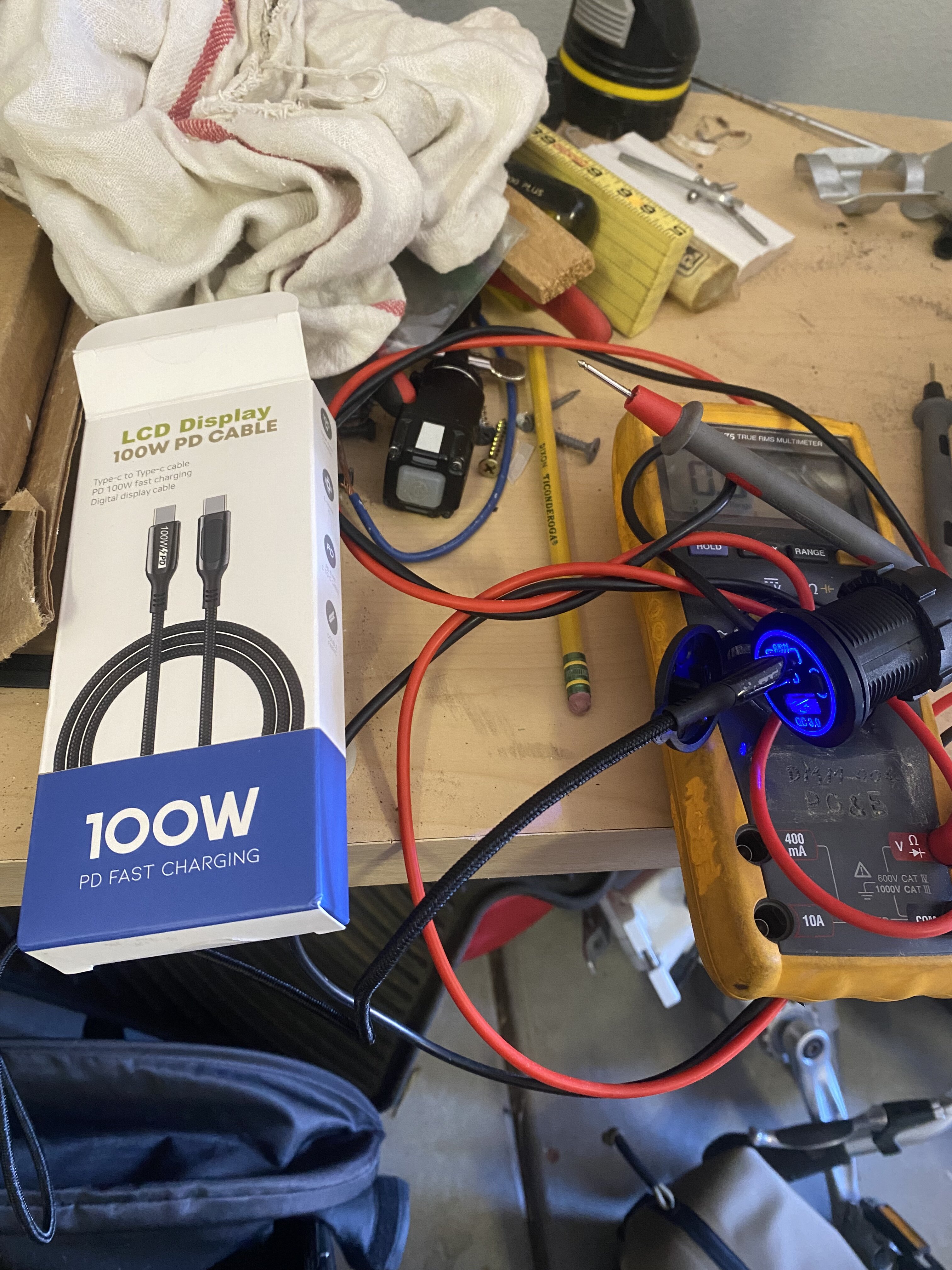

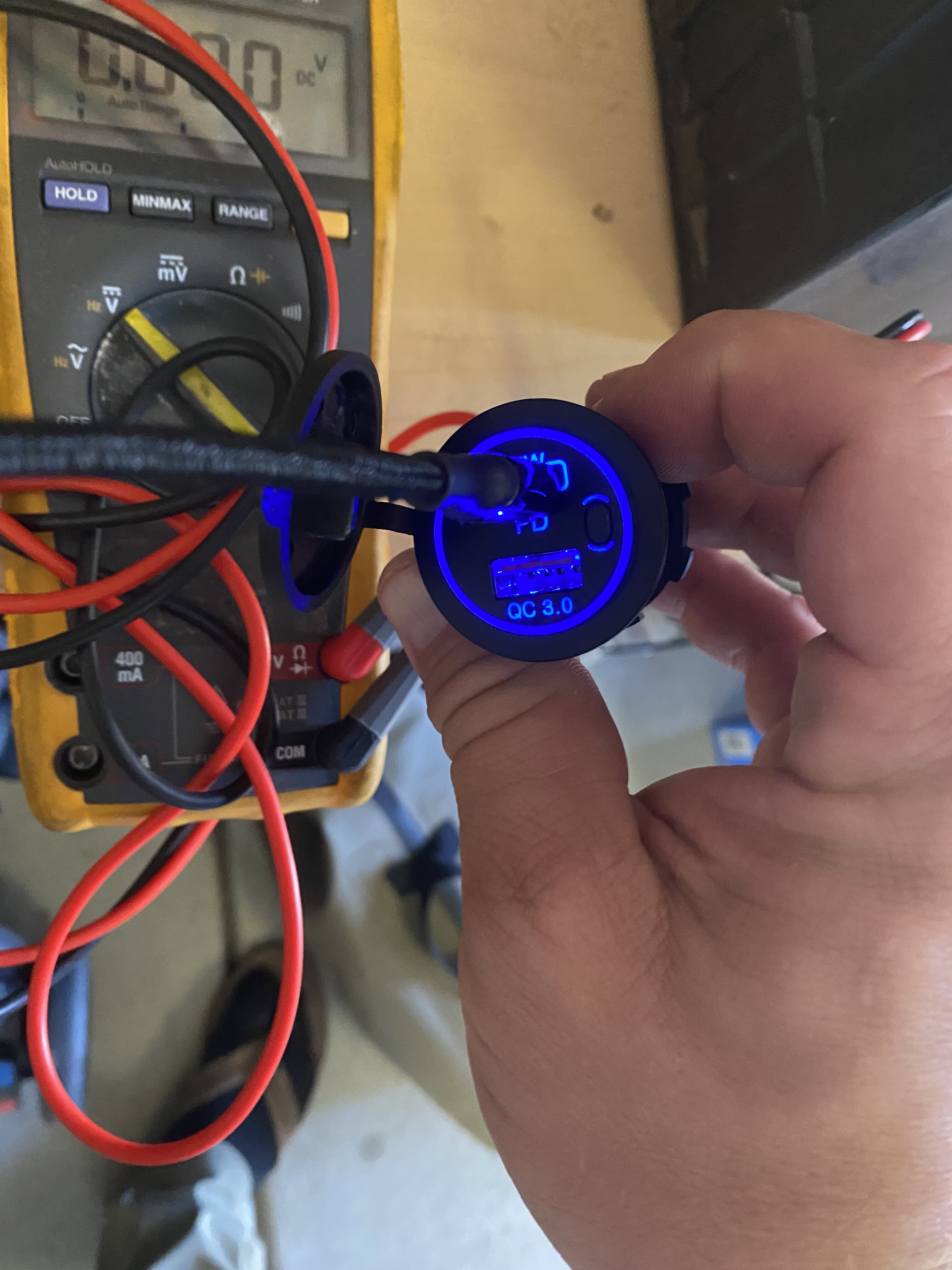

So, I’ve hooked up my Amazon Chinese 65w USBc PD aux port to a 12V battery on the bench. The battery showed 12.2V before getting started.

I’ve got a 100w PD smart cable with LCD display running to the USBC on my Lenovo laptop, which has a 65w wall charger.
The LCD on the cable is showing fluctuation in delivered wattage as the smart chip in the cable negotiates with the laptop for charge needs. It shows between 10, and 50 watts.

The laptop is currently at a 5% deficit from full, and I’ll leave it setup to see if I can get the laptop to charge while in hibernate mode.

I’ve also got the battery clipped on to a 12V trickle charger, I’ll give that a try to see if it mimics an alternator delivering current to the battery, and if that changes any of the energy delivery.

Sofar I haven’t blown any fuses, melted anything or noticed any heat generated in the lines, and the laptop is recognizing energy delivery, the question is how quick is it. I’ll let it continue for 1/2 an hour longer and report back.


Attachments

  • D812904D-8663-4FA3-A8C5-7A5263B9CB4F.jpeg
    1.9 MB · Views: 126
  • 17E055FA-C71B-4BFD-84C0-4614DE19AC2C.jpeg
    1.3 MB · Views: 110
  • 8D55985C-AA38-44C2-B02F-86006F4FDC0E.jpeg
    1.7 MB · Views: 92
  • 20732E52-4DE3-4451-9A55-E2E796769FCF.jpeg
    1.5 MB · Views: 93

LeftCoastOverland

Grenadier Owner
Lifetime Supporter
Local time
9:41 PM
Joined
Jun 21, 2023
Messages
331
Reaction score
539
Location
Port Fairy VIC, Australia

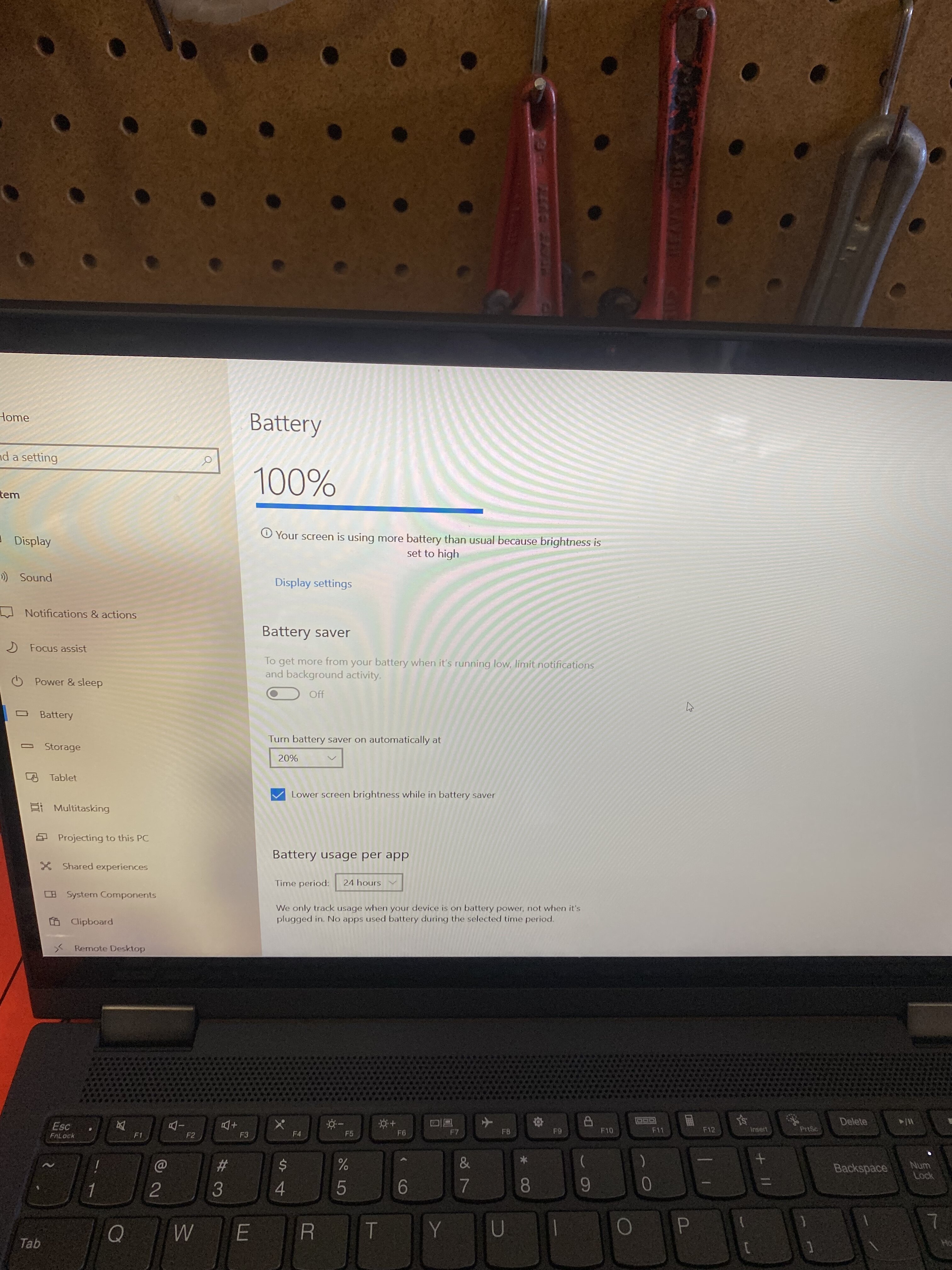

And in less than 20 minutes it brought the laptop charge up 5% to a full charge.

This concludes the test worked as a success, and I’ll be installing the receptacles into my Aux 1&2 spots.

I’m also simultaneously charging an iPhone via usbA 18w, from 45%.

Once fully charged with the laptop running I’ll see the voltage drop on the 12V


Attachments

  • A9853811-ECAD-4CAE-B716-FBED6A870918.jpeg
    1.8 MB · Views: 145

Javasipper

Grenadier Owner
Local time
3:41 AM
Joined
Mar 12, 2024
Messages
15
Reaction score
42
Location
Oregon, USA

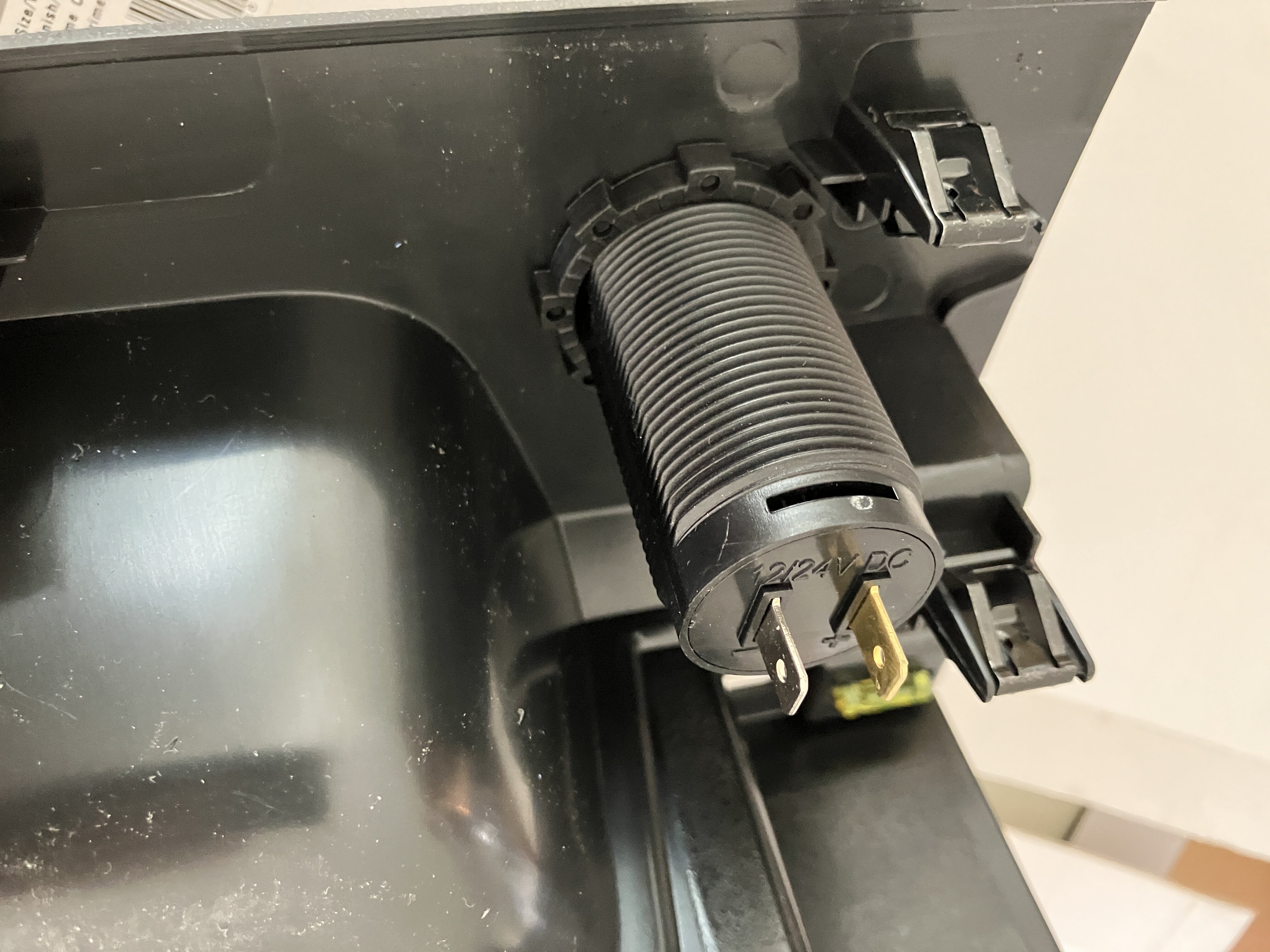

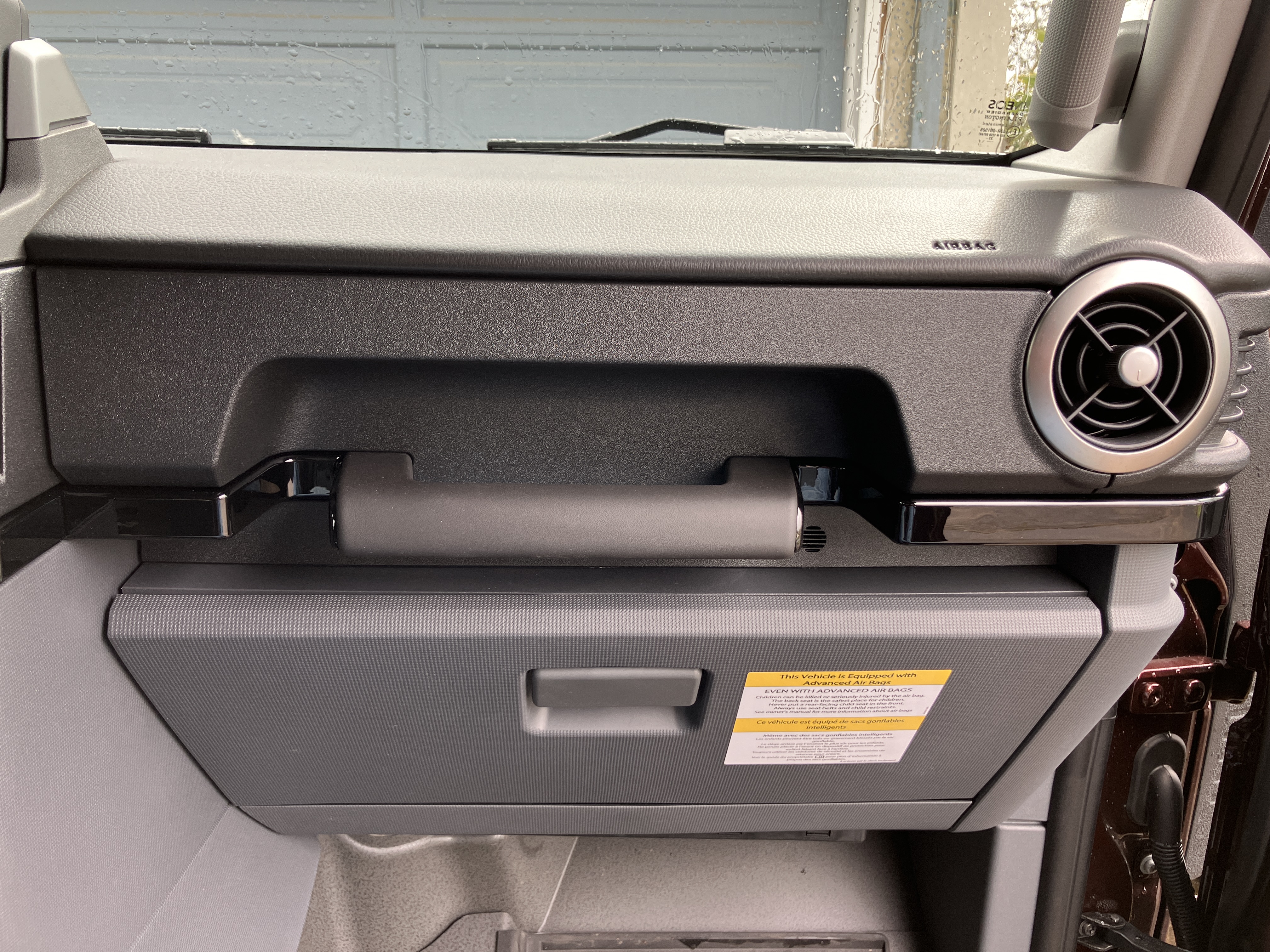

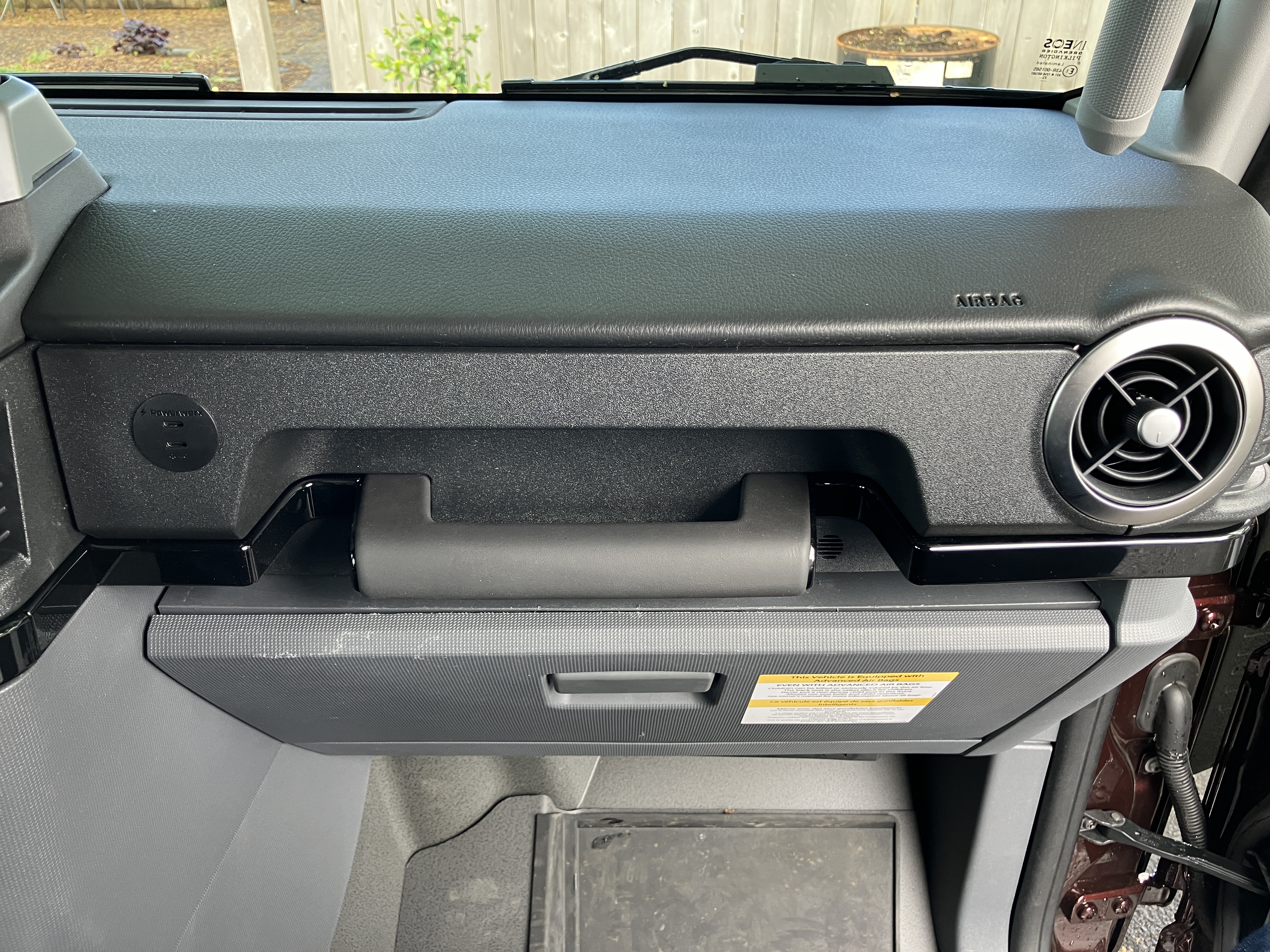

I installed some Powerwerx Panel Mount Dual USB-C QC 4.0 Fast Chargers in my IG. Love their clean design and functionality. I installed one on the passenger side, next to the "Jesus" grab bar. Easy to install. NOTE: It's installed well below the airbag, so no "projectile" issues.


Attachments

  • IMG_8325.JPG
    3.5 MB · Views: 123
  • IMG_8327.JPG
    4.1 MB · Views: 128
  • IMG_8328.JPG
    3.8 MB · Views: 124
  • IMG_8329.JPG
    2.9 MB · Views: 124
  • IMG_8330.JPG
    3.2 MB · Views: 124
  • IMG_8332.JPG
    1.9 MB · Views: 116
  • IMG_8333.JPG
    1.7 MB · Views: 119
  • IMG_8334.JPG
    2.5 MB · Views: 119
  • IMG_8335.JPG
    1.8 MB · Views: 127
  • IMG_8673.JPG
    5.1 MB · Views: 135
  • IMG_8324.JPG
    3.1 MB · Views: 130
  • IMG_8323.JPG
    2.9 MB · Views: 121
  • IMG_8322.JPG
    3.6 MB · Views: 123
  • IMG_8307.JPG
    4.1 MB · Views: 124
  • IMG_8309.JPG
    4.2 MB · Views: 125
  • IMG_8310.JPG
    3.3 MB · Views: 119
  • IMG_8313.JPG
    3.8 MB · Views: 122
  • IMG_8314.JPG
    3.7 MB · Views: 117
  • IMG_8316.JPG
    4 MB · Views: 122
  • IMG_8317.JPG
    4.6 MB · Views: 121
  • IMG_8318.JPG
    3.2 MB · Views: 117
  • IMG_8319.JPG
    3.4 MB · Views: 115
  • IMG_8321.JPG
    3.3 MB · Views: 122
  • IMG_8674.JPG
    4.2 MB · Views: 122

Javasipper

Grenadier Owner
Local time
3:41 AM
Joined
Mar 12, 2024
Messages
15
Reaction score
42
Location
Oregon, USA
I installed some Powerwerx Panel Mount Dual USB-C QC 4.0 Fast Chargers in my IG. Love their clean design and functionality. I installed one on the passenger side, next to the "Jesus" grab bar. Easy to install. NOTE: It's installed well below the airbag, so no "projectile" issues.
It's tapped into the pre-installed wiring leads for the Interior 2 switch.


Cheshire cat

Grenadier Owner
Lifetime Supporter
Local time
11:41 AM
Joined
May 30, 2022
Messages
1,982
Reaction score
4,678
Location
Cheshire, UK
A really tidy job. Did you find it reasonably easy to dismantle the dash when not knowing types and locations of fixings?


Javasipper

Grenadier Owner
Local time
3:41 AM
Joined
Mar 12, 2024
Messages
15
Reaction score
42
Location
Oregon, USA
A really tidy job. Did you find it reasonably easy to dismantle the dash when not knowing types and locations of fixings?

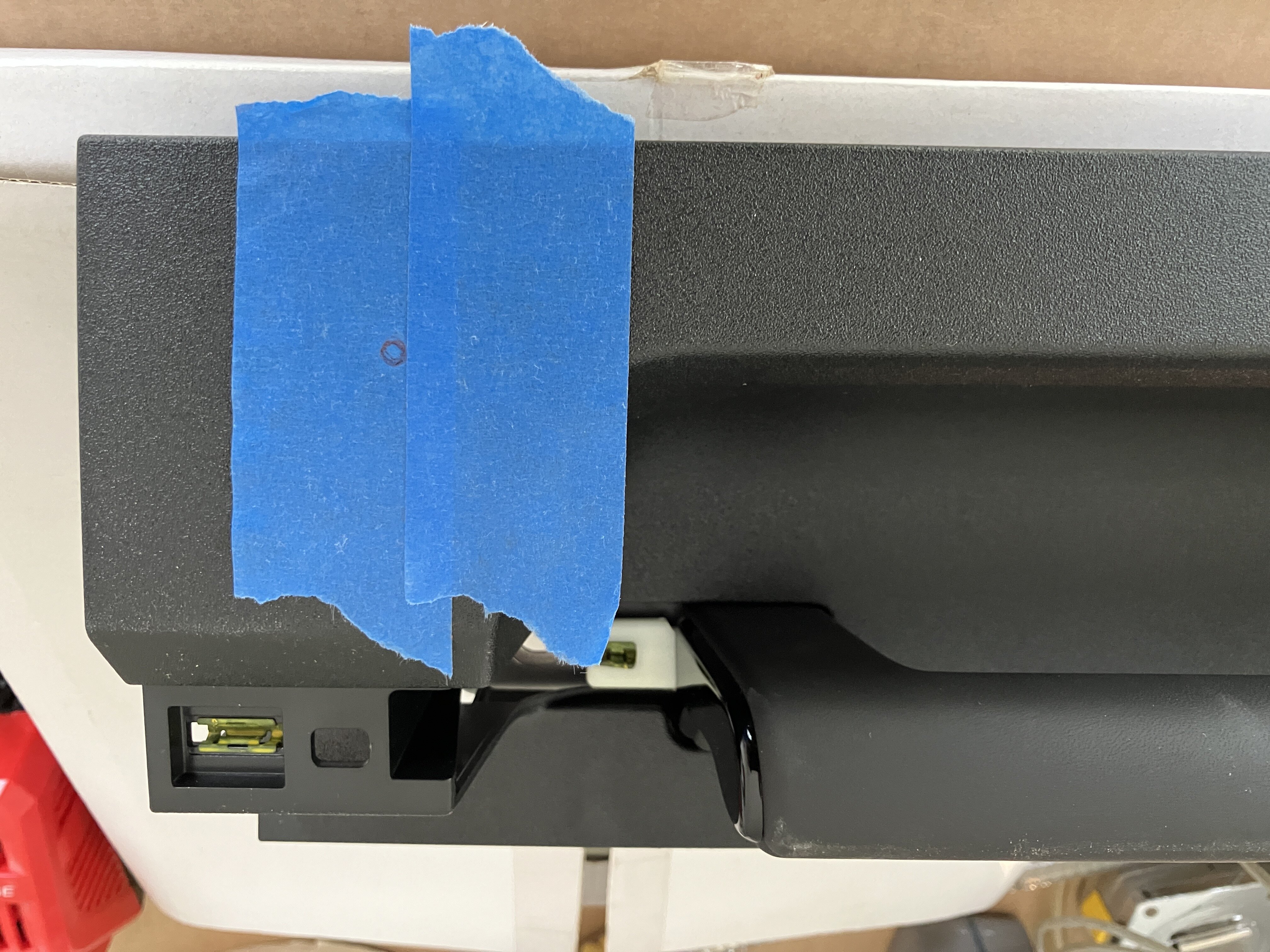

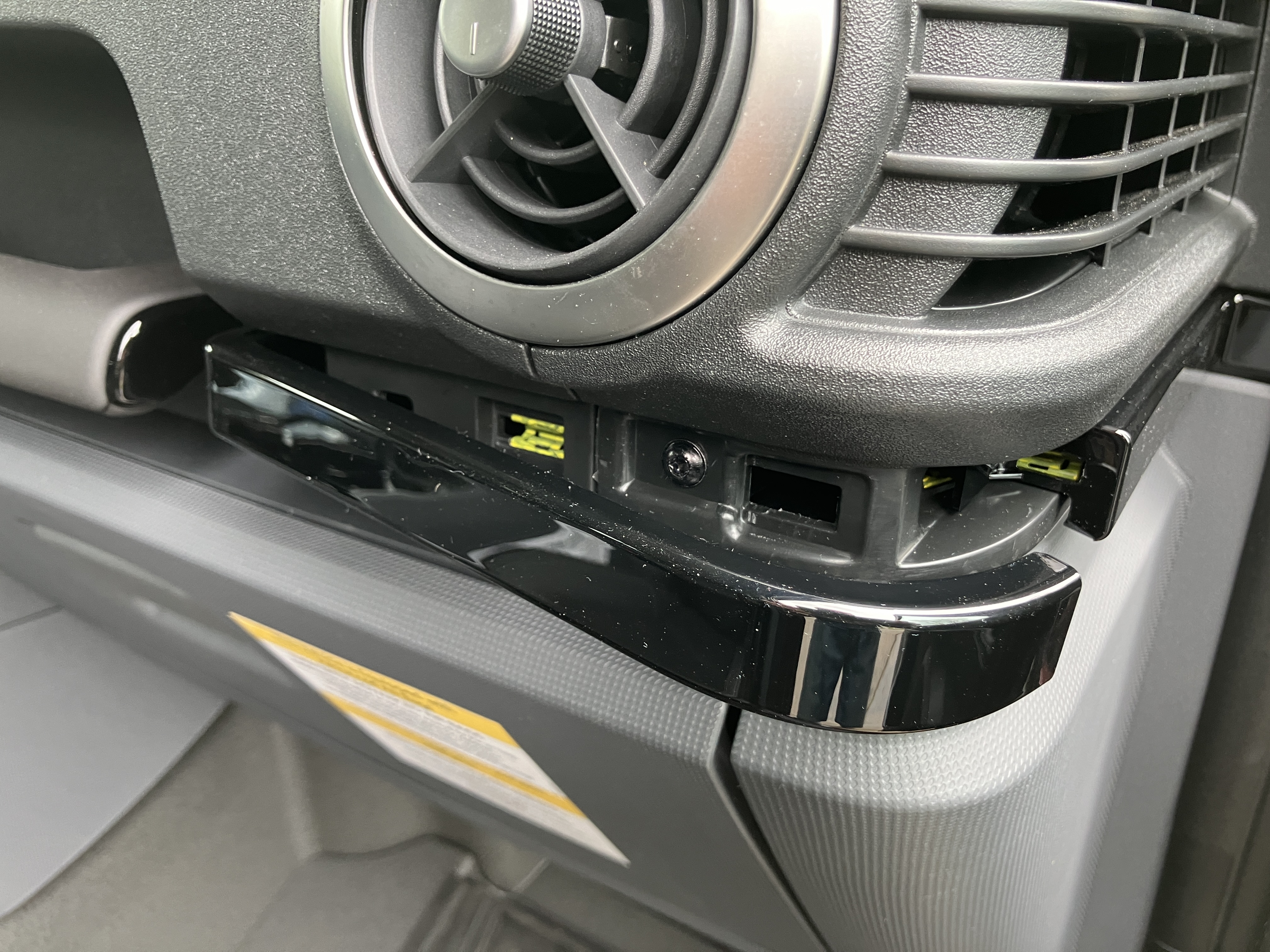

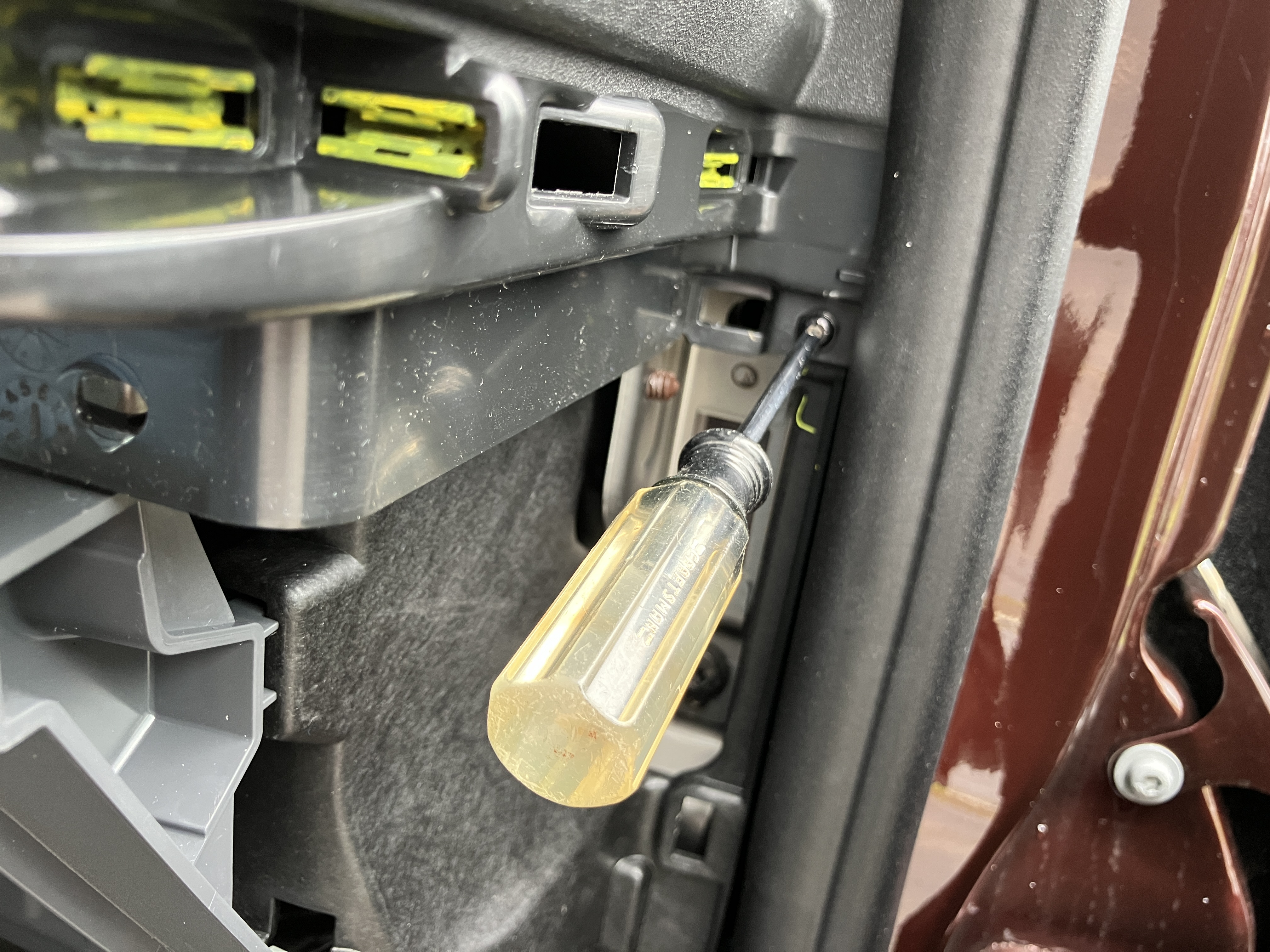

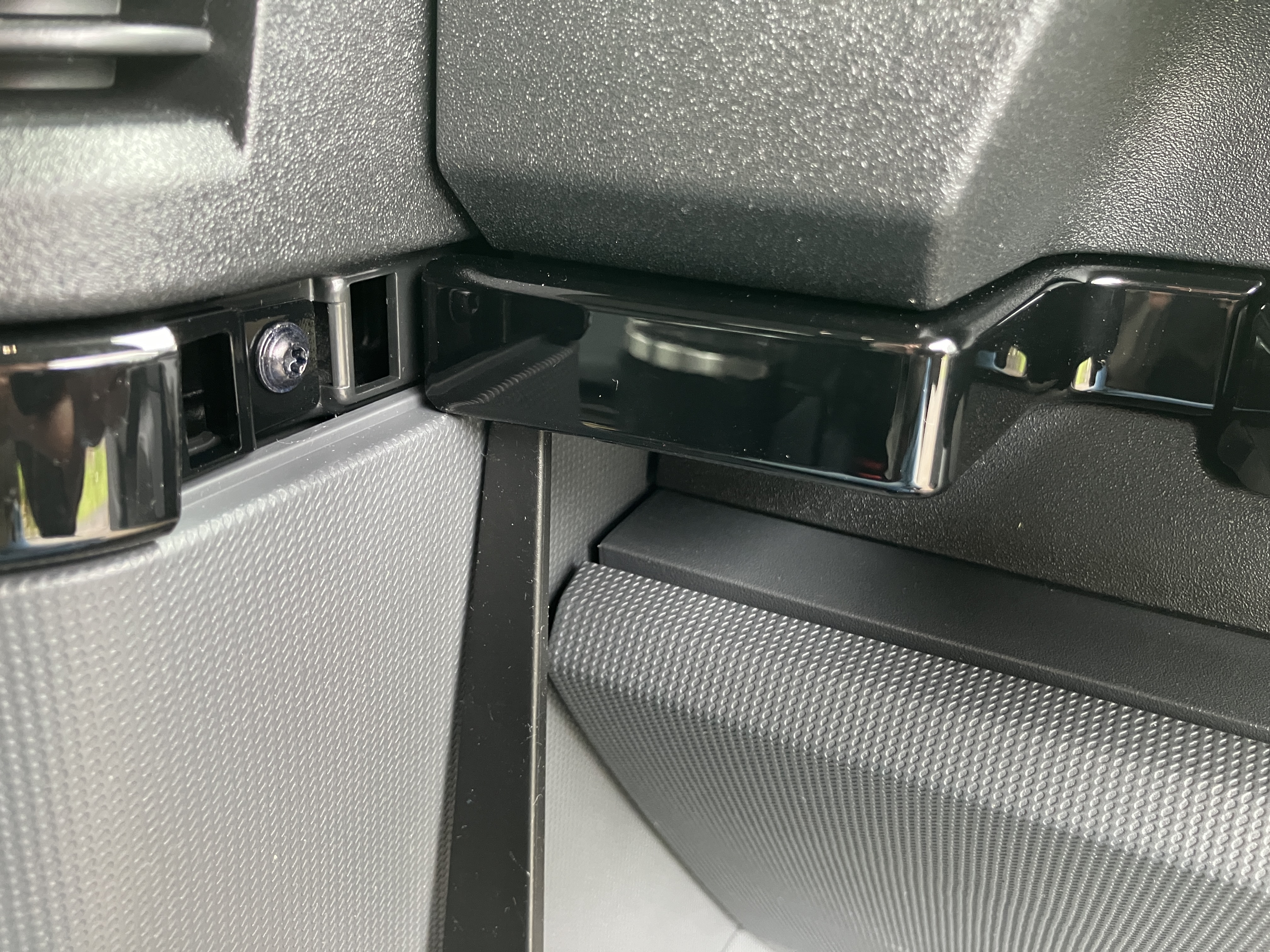

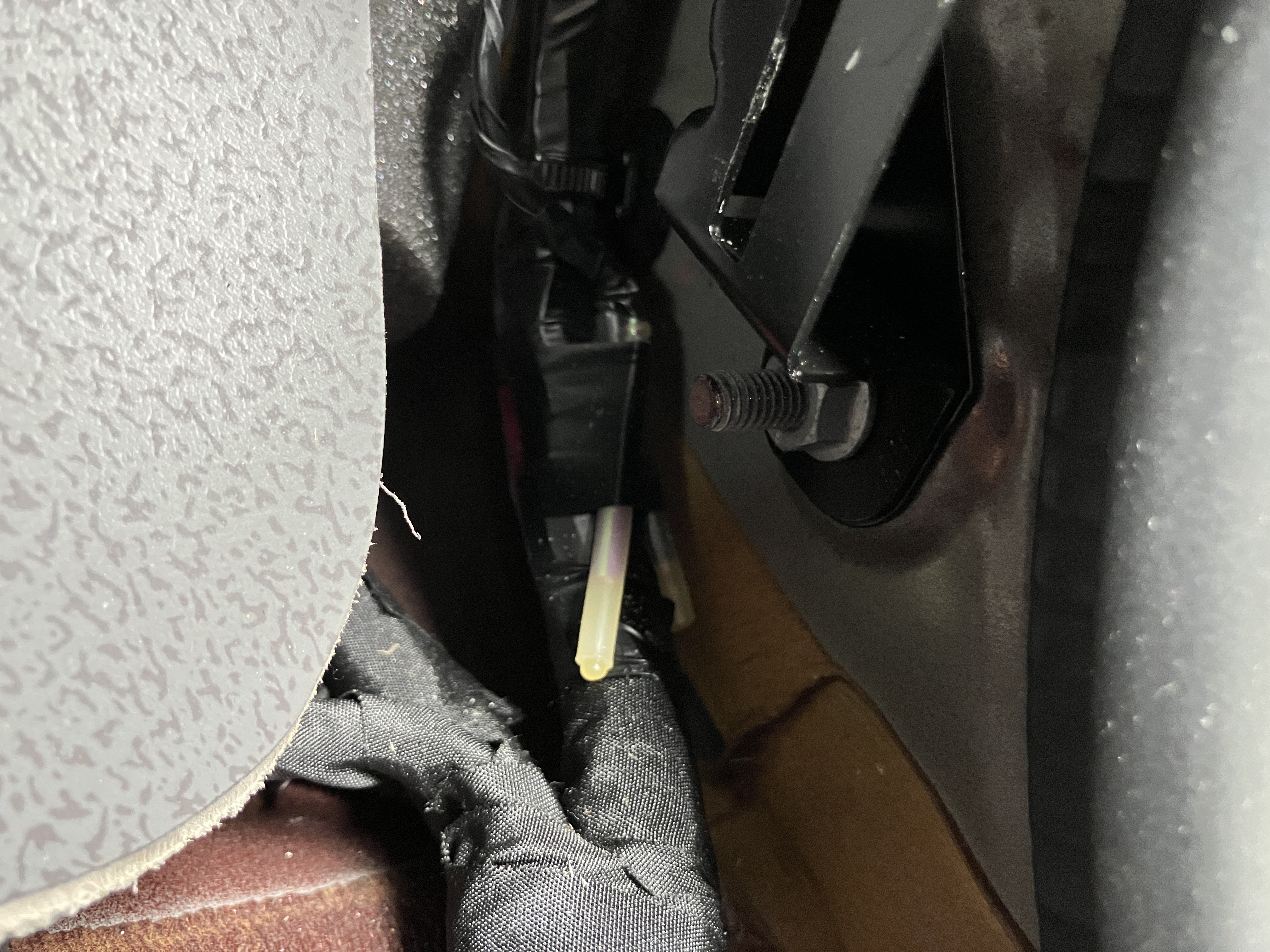

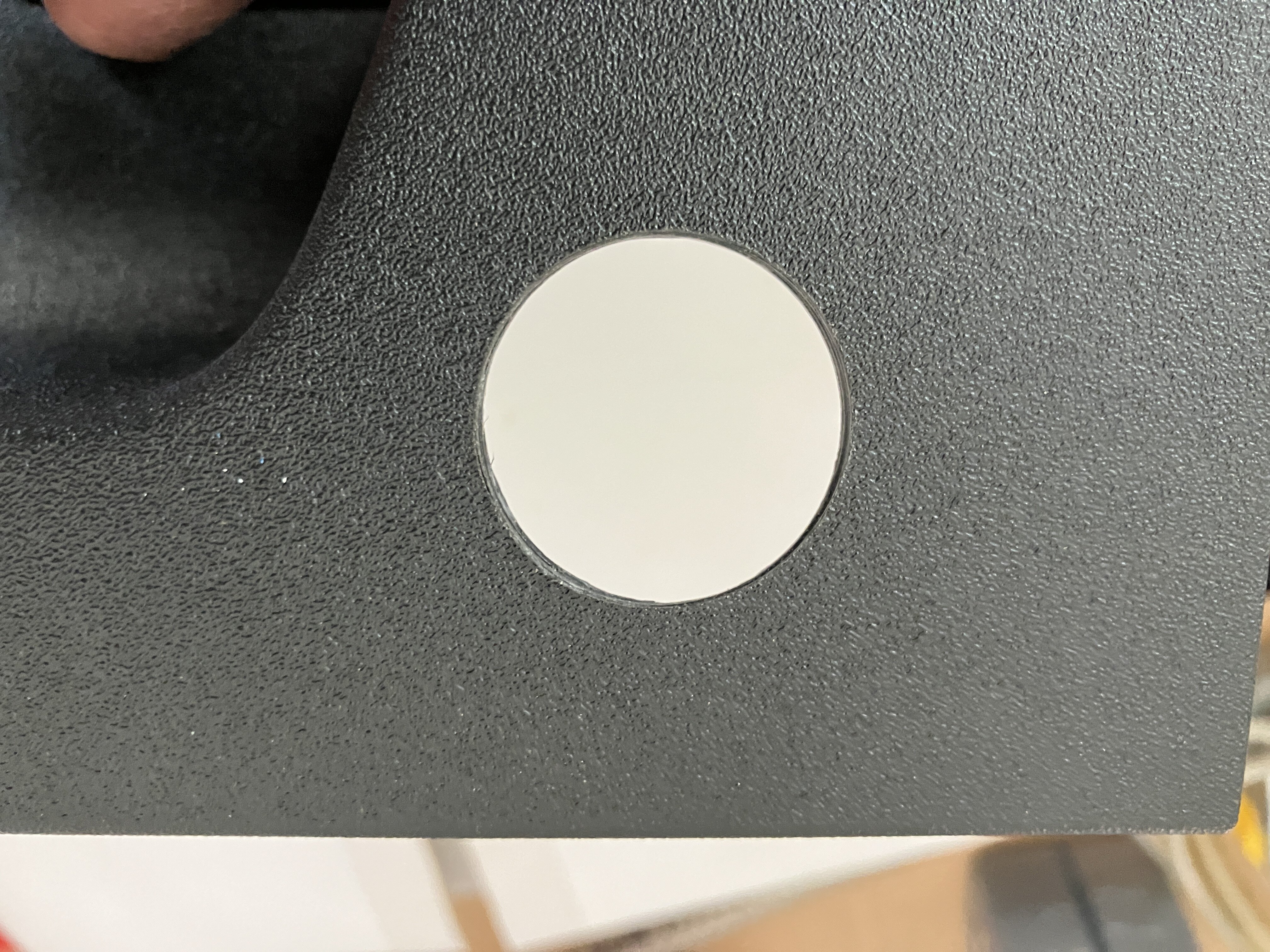

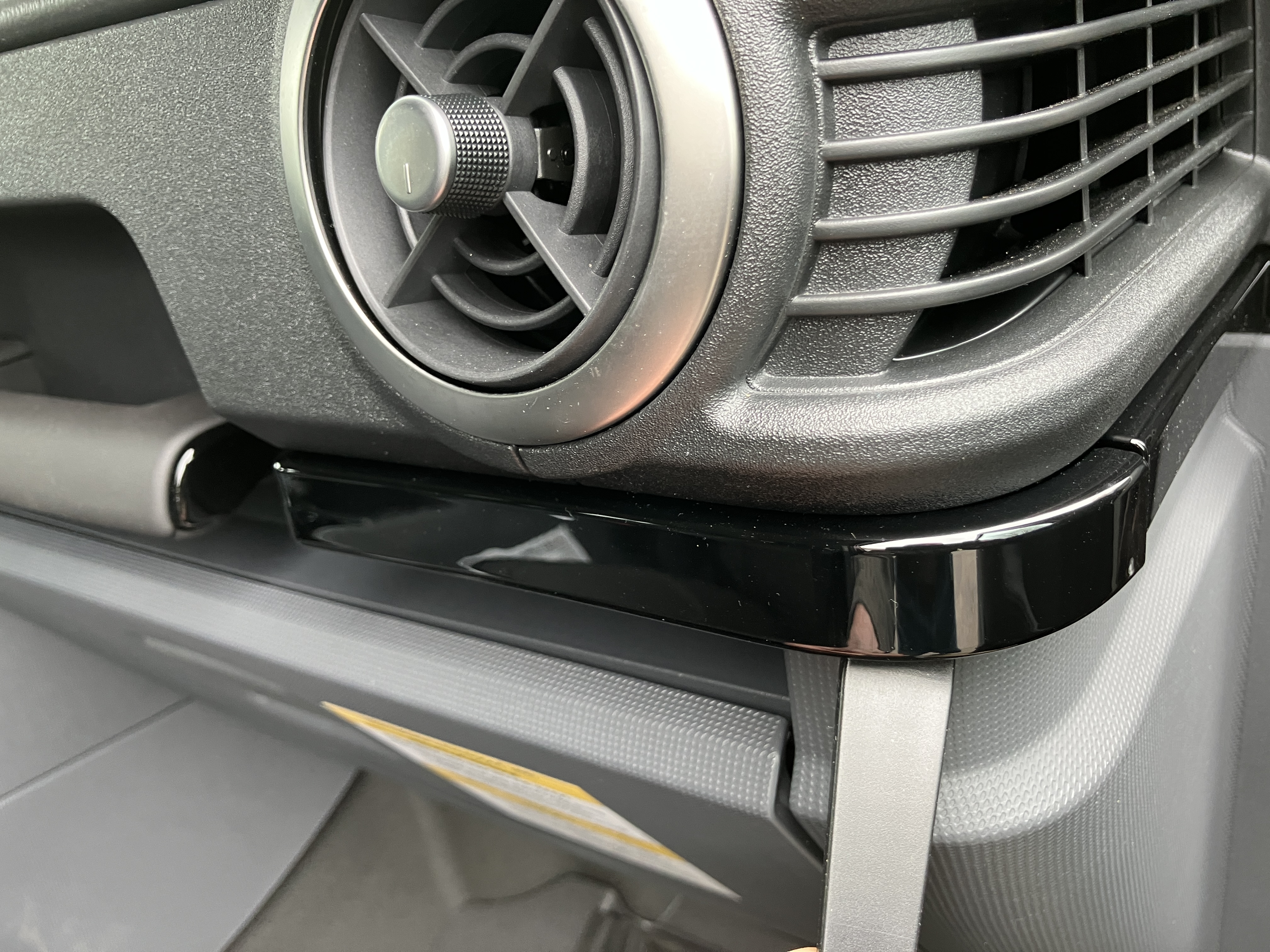

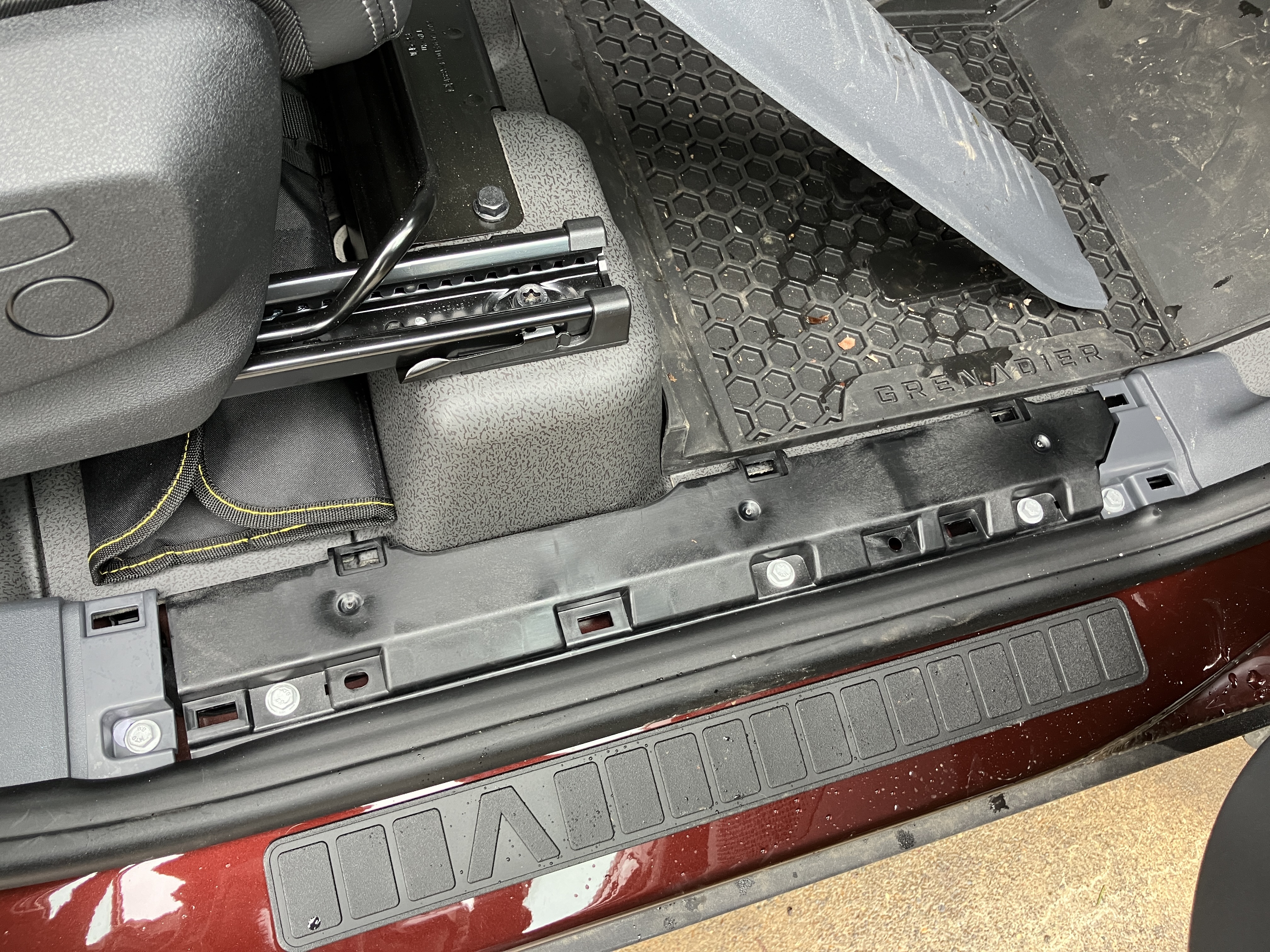

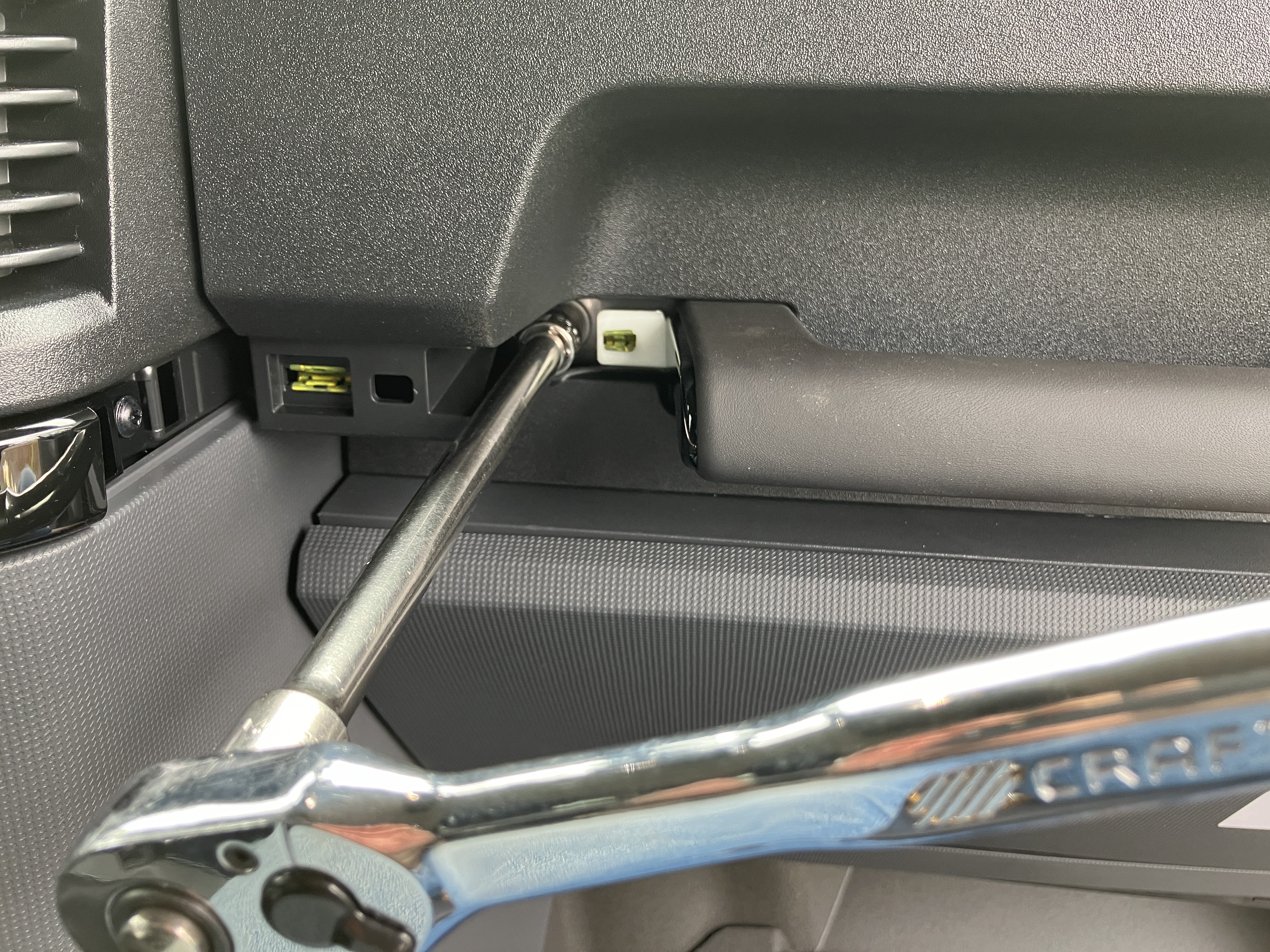

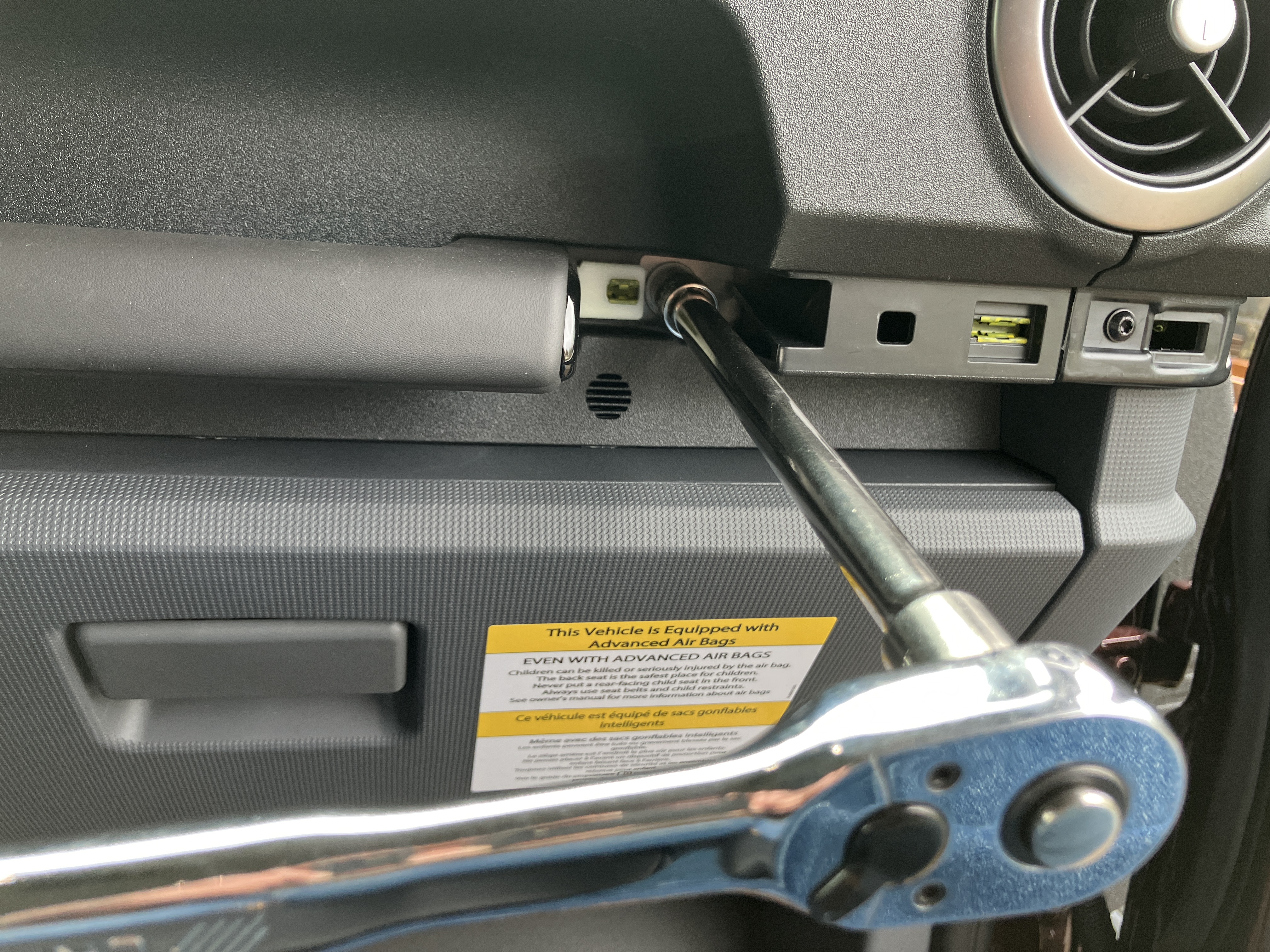

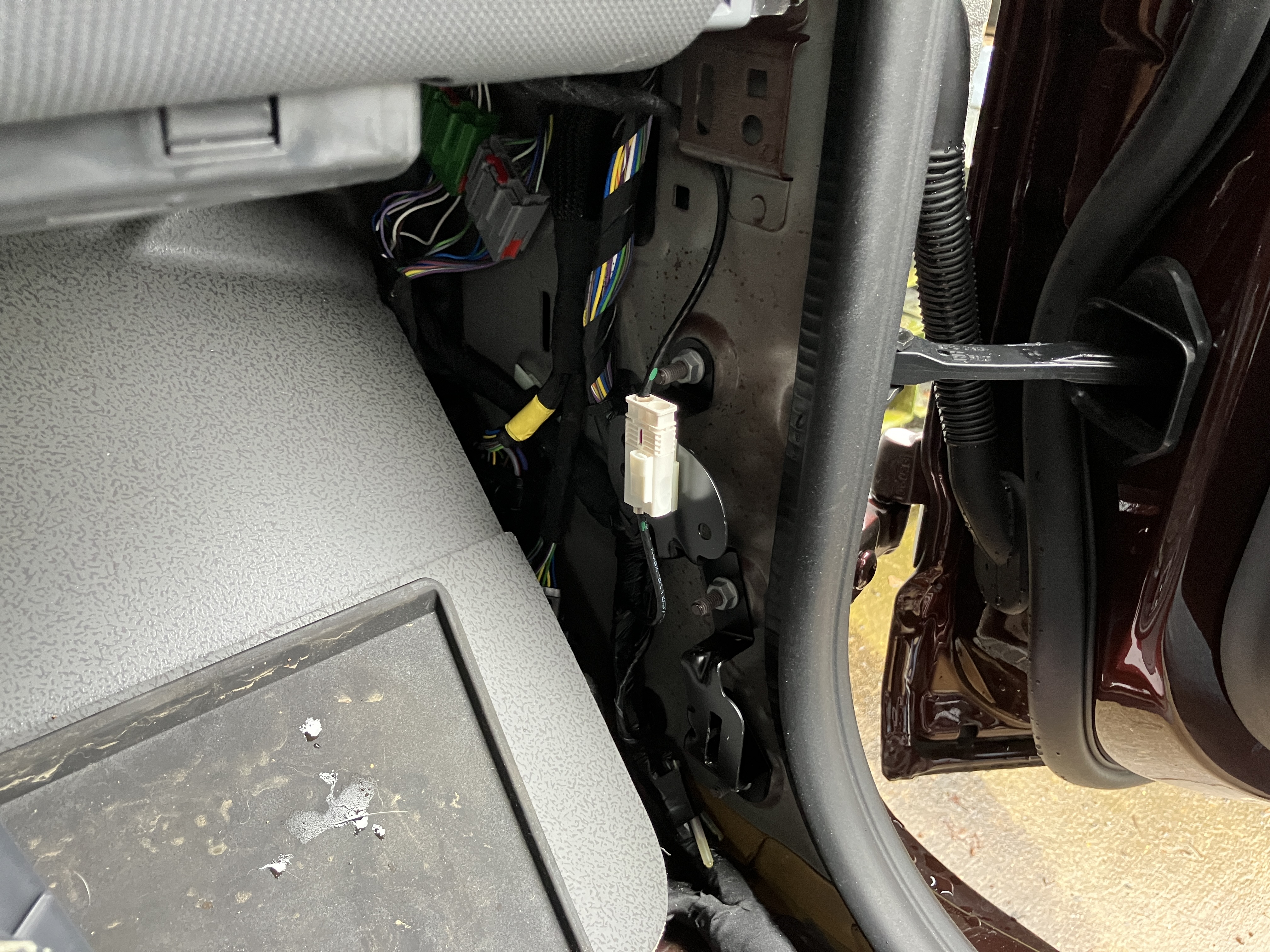

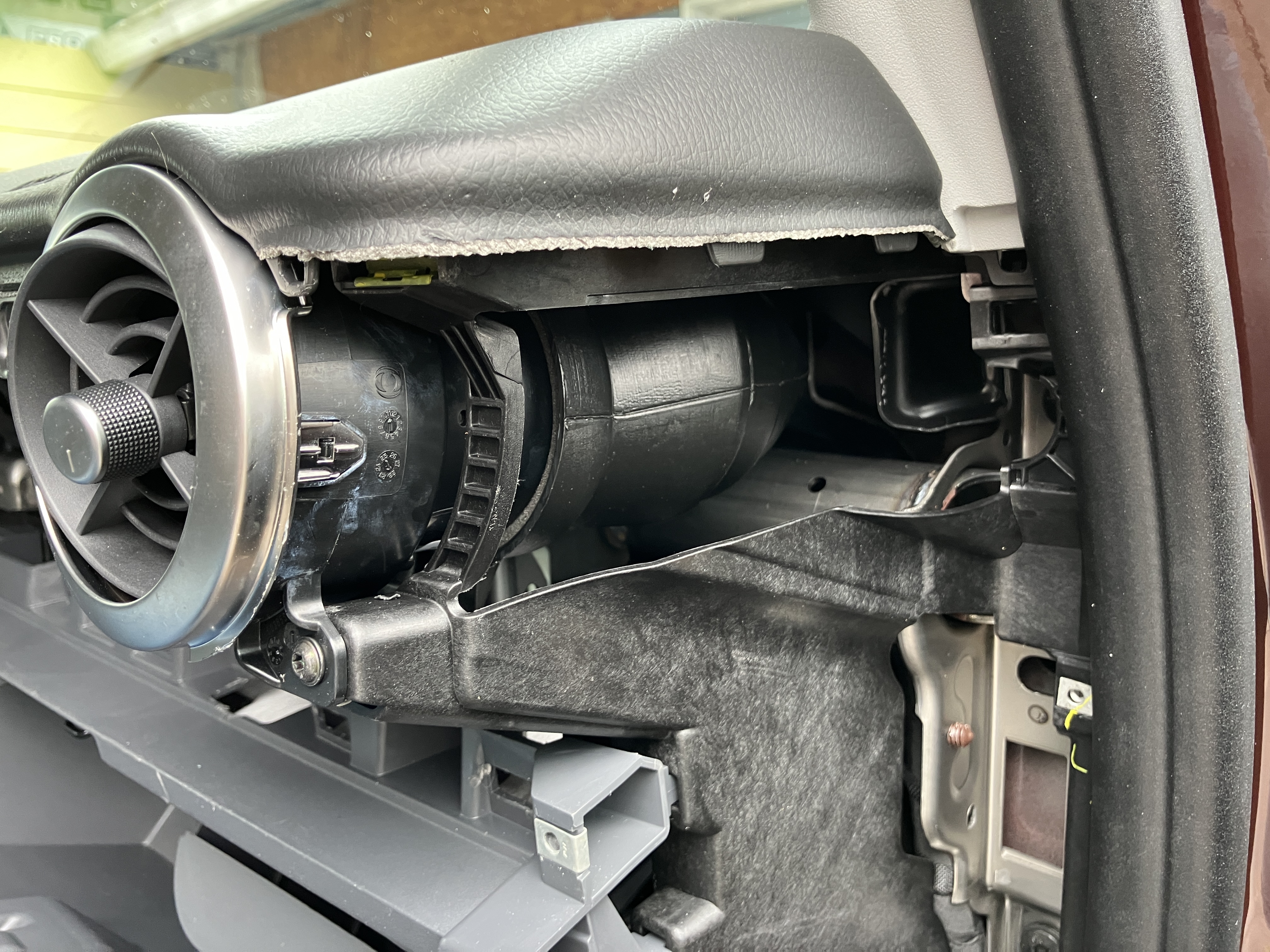

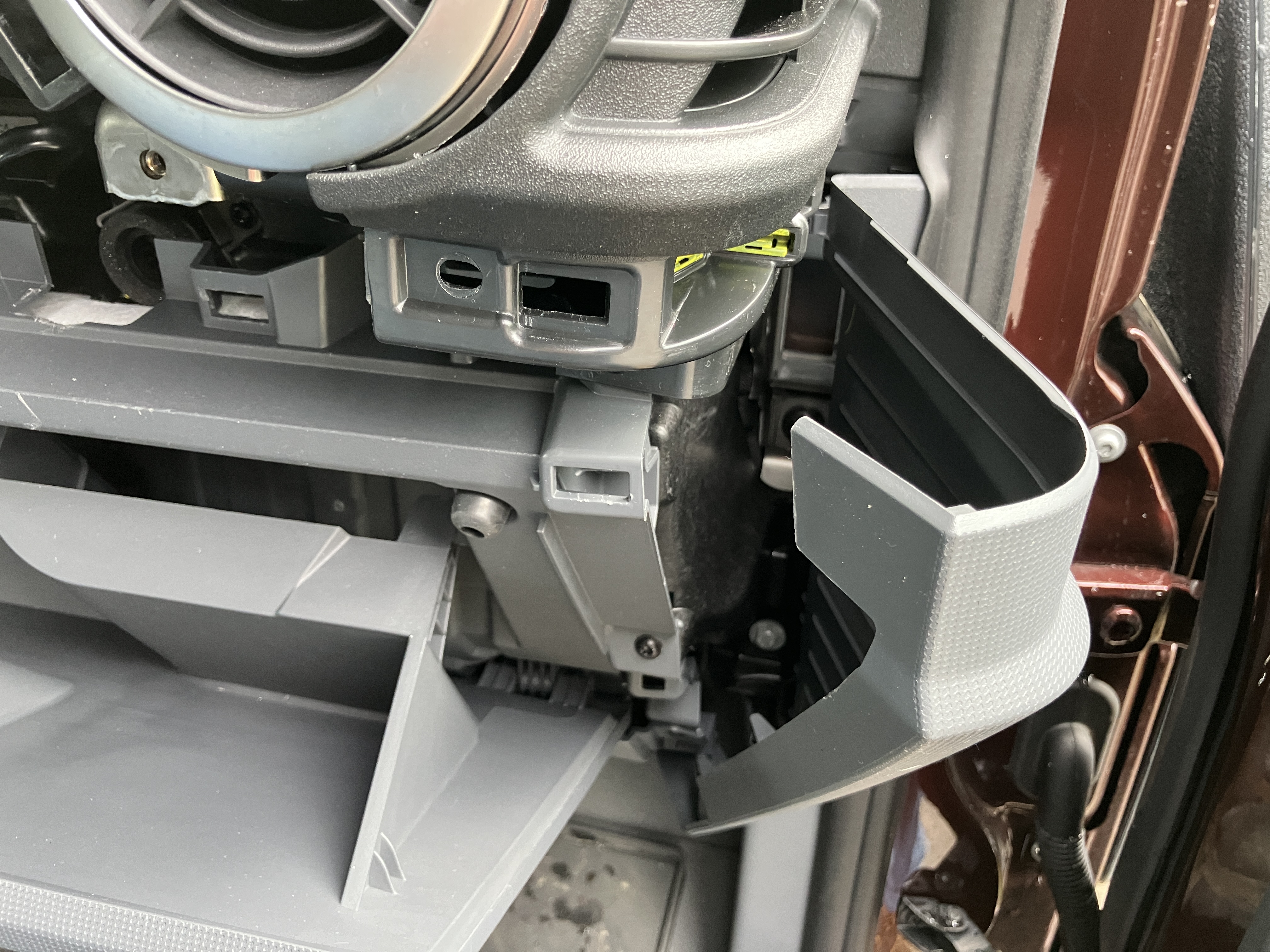

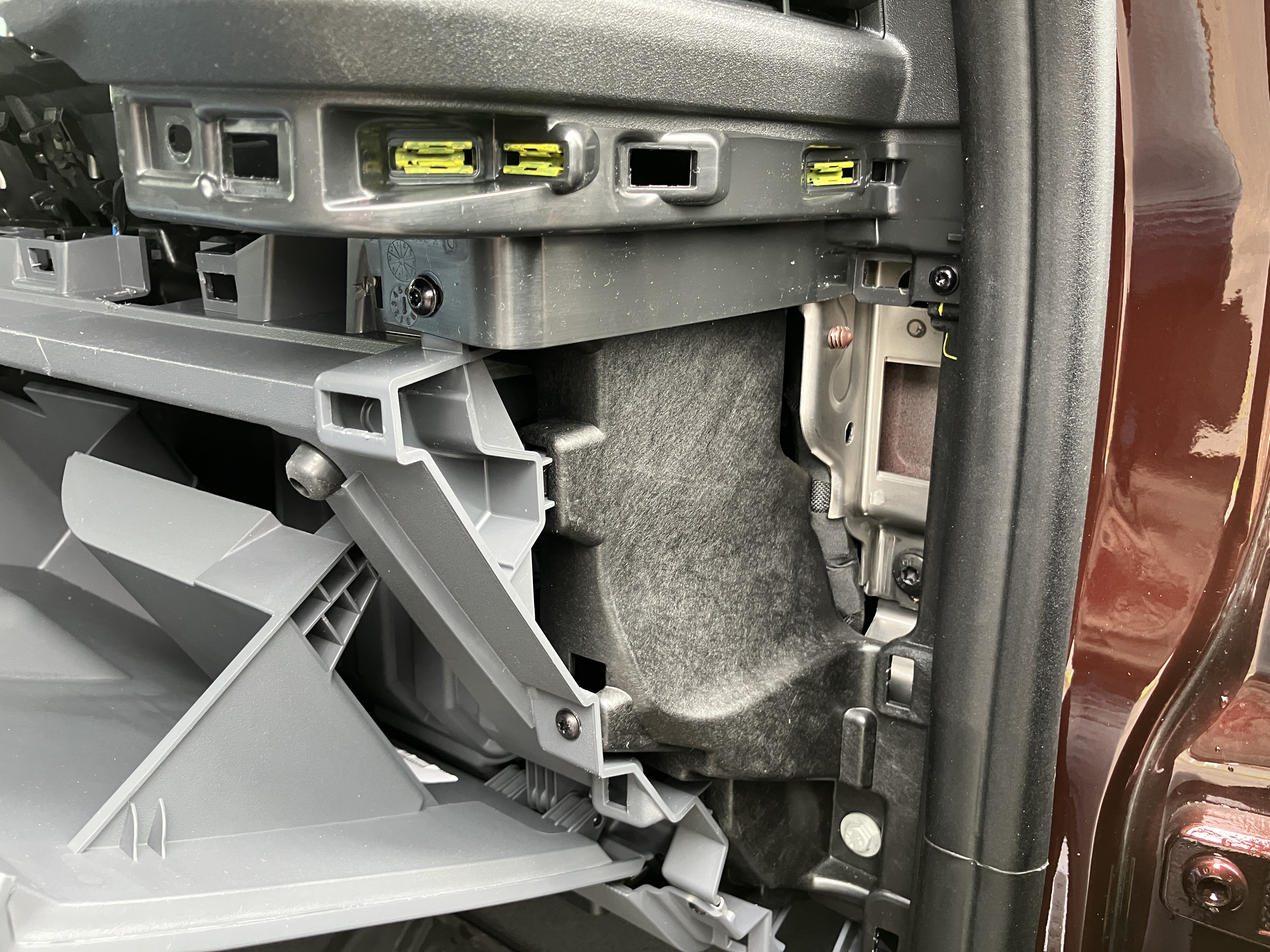

It was easy. Just go slow and easy. These photos should show everyone where the clips and screws and bolts are. I had the photos in order of progression when I posted this, but somehow they are now in a scrabbled order.


Cheshire cat

Grenadier Owner
Lifetime Supporter
Local time
11:41 AM
Joined
May 30, 2022
Messages
1,982
Reaction score
4,678
Location
Cheshire, UK
It was easy. Just go slow and easy. These photos should show everyone where the clips and screws and bolts are. I had the photos in order of progression when I posted this, but somehow they are now in a scrabbled order.
Your contribution to this forum is first class. Next time I make some mods I should take as many pics as you have done. A picture paints a thousand words.
