When I get my car next month, I hope to get a better image of the rear fuel/water separator.



[TheDocAUS]

AU SPEC DIESEL – REAR FUEL FILTER IS THE ONE TO CHANGE
This AU Spec Diesel is fitted with two fuel filters. The water/fuel separator down near the fuel tank (passenger side rear wheel arch) and a second fuel filter up under the rear passenger (RHD vehicle).

Speaking to the Service Manager today at Purnell Adventure he said INEOS Australia recommended replacing the filter in the rear water/fuel separator. The front filter does not normally need to be changed (there must a need at some time?).

The rear fuel filter cost was AUD71.40 plus GST.



[TheDocAUS]

REAR FUEL FILTER PART NUMBER (water fuel separator on AU spec diesels)
Water Separator Filter Part No: GRA3E12019770



[TheDocAUS]

The rear INEOS water/fuel separator is slowly giving up its secrets. What the INEOS Configurator describes as the Diesel water separator.

It uses a “paper filter” (probably a Cellulose/Synthetic Blend) with INEOS Part No: GRA-3E12-019770. It is made in China. INEOS is the only name appearing on the packaging and both labels.

There are two other numbers on the box 11 00 1007 0321TZ and EI-00000119533. I could find nothing searching on all three numbers. I was hoping to find the OEM manufacturer. Fail.

The underlying label says filter expiry October 2024, the filter was made on 17 October 2022.

The fuel filter looks like this (the filter is in a plastic wrapper):

It comes with an O-ring for the filter case.

I spoke to the Service Manager about how to change the filter, apparently you need to disconnect both sets of wires (top and bottom of the filter case), disconnect the fuel lines in and out of the top of the filter case. Then undo the two bolts and take the casing off and change the filter. No simple task.

I still cannot get a decent image of the filter case but you see the two bolts on the top left of picture. I think the filter cap maybe the bottom of the case (what you see in the image below).



[DenisM]

Thanks for your hard work @TheDocAUS !
Memo for off-road tool kit: include two water/fuel/brake hose clamps to enable fuel filter change....



[TheDocAUS]

Thanks for your hard work @TheDocAUS !
Memo for off-road tool kit: include two water/fuel/brake hose clamps to enable fuel filter change....

When I was under the car today, I could not work out how to remove the fuel hoses, there must be some trick. I asked the Service Manager for INEOS' instructions.

The Service Manager did get under the car and take me through the steps. Thank you Nathan at Purnell Adventure.



[Rok_Dr]

When I was under the car today, I could not work out how to remove the fuel hoses, there must be some trick. I asked the Service Manager for INEOS' instructions.

The Service Manager did get under the car and take me through the steps. Thank you Nathan at Purnell Adventure.

I will be asking for a written work instruction for this and replacing the serpentine belt when I take the car in next week to get some little warranty issues attended to. Bought the filter and Serpentine belt a couple for the spares kit, the day I got the car.

cheers
Steve



[TheDocAUS]

This is a picture of the rear fuel filter on the INEOS Australian spec diesel motor. EDIT: the diesel fuel water separator is standard in some countries and optional in others. When choosing a diesel motor if the option costs $0 dollars it is standard, if you have to pay it is optional. A little smaller than a Prevent 200 oil catch can (size comparison only). The type of plastic used was very similar to the material used in the Provent 200 Oil Catch Can.

The fuel in line and fuel out line are at the top of the filter and you cannot see them clearly in this image. It is hard place to get a decent photo.

The plug on the bottom is a AMPSEAL plug. I will tape up those exposed wires near the bottom of the image on the AMPSEAL plug. The ladder frame was red, the car was black.

Fuel filter located near rear wheel arch, passenger side (RHD car). You can only see it by getting under the car. You cannot see it by looking into the wheel arch over the tyre.

I could see any third party brand name on the filter case, but I could only see part of the case. White label has INEOS' name on it.

View attachment 7819963

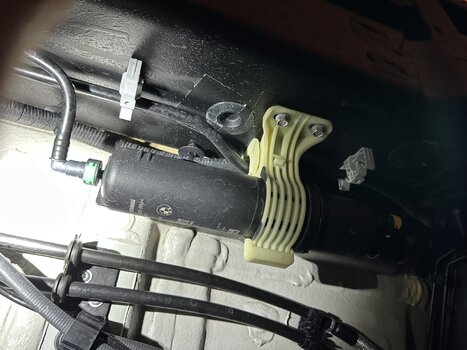

Second fuel filter location
Thanks to @DenisM we have the location of the second fuel filter: "Slightly to the rear of the mid-line of the rear LHS passenger door. It's a cylinder -at a (very) rough guess about 50mm in diameter and about 120-150mm in length, retained in a white coloured plastic "saddle" clip which is screwed to a "vertical" surface... It's visible from the RHS although the view is partially restricted by a/the ?muffler."

Image here (thanks to @MarkH for the link). I am thinking a guard for that filter might be a good idea ( I have emailed KAON asking for one):

FUEL FILTER GUARD UNDER DEVELOPMENT
Stayed tuned because a guard for the fuel filter (see green arrow) is under development. Prototype already made and fitted.

The idea is to make the fuel filter and fuel line less vulnerable. At least one car has had the line detached from the filter offroad, probably by a branch, disabling the car.

EDIT: Guard now on sale, details here.
