Under dash UHF radio install

Telliottaus

Grenadier Owner
Lifetime Supporter
Local time
1:51 AM
Joined
Jun 23, 2022
Messages
72
Reaction score
136
Location
Perth, Western Australia

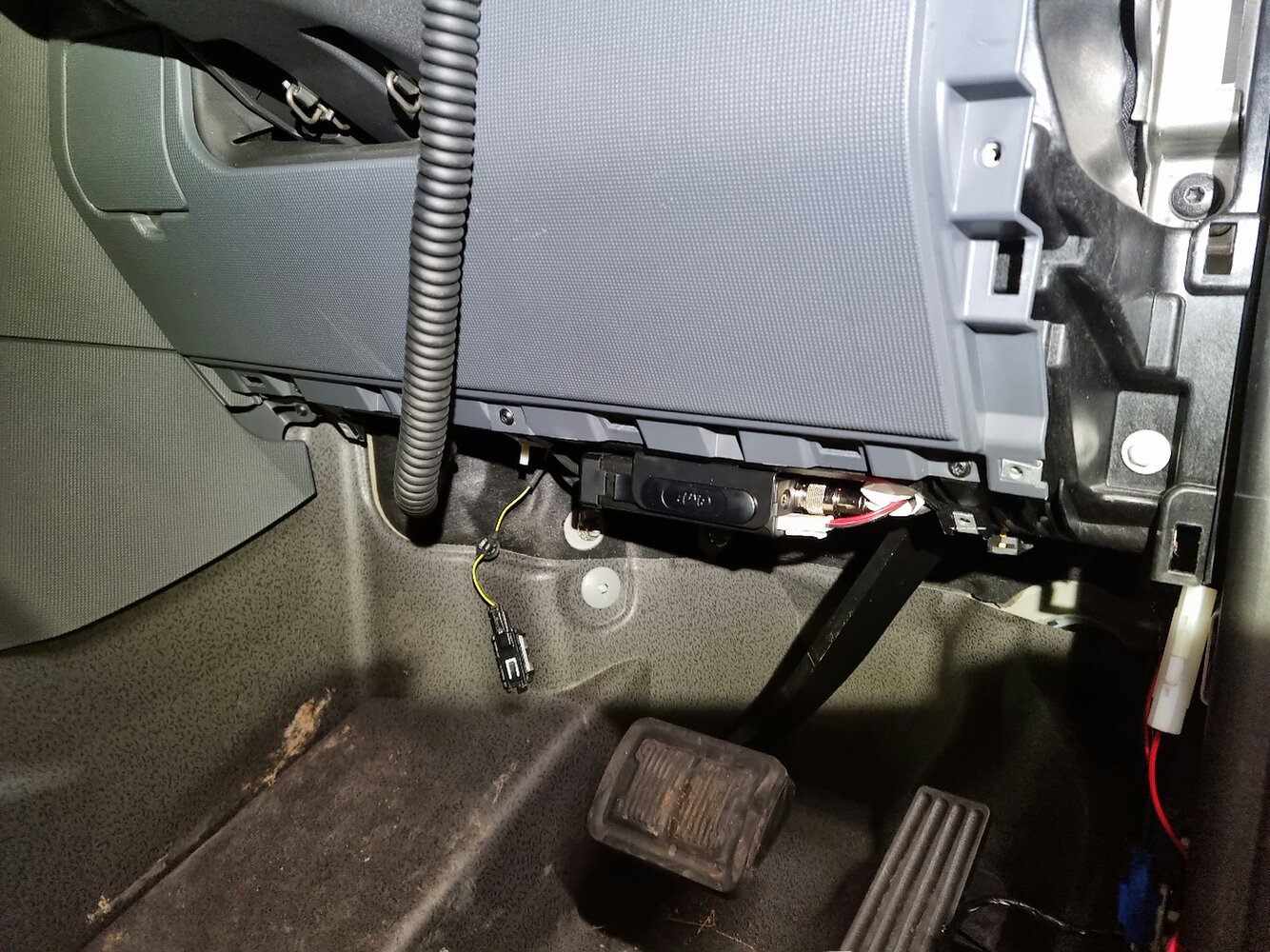

This is a short description of my install of my UHF radio under my steering wheel with the antenna (temporarily) attached to the grab rails. I'm still waiting for my roof rack. My vehicle is RHD with aux power. I used the grommet for my power outlets, under the grab bars. Removed the grab bar and fed the antenna through the grommet, along the roof inside, you'll see where to go once you take the grab bar off. Along the roof down the b pillar. Need to make sure you go behind the curtain airbag above the passenger door or you'll have a problem if you need it... To remove the B pillar trim, start at the bottom, remove the front door and rear door sill trim. Unscrew the bolts and lift the bottom piece off. There are two screws at the bottom of the next piece of trim which need to be removed and the top piece just clips in. You need a trim removal tool and be gentle. I have the removable hose out floor so lifted that in the front and rear. Once I got the cable to the ground, went under the middle of the chair as it was too tight where the wiring loom was. From there along rhs wiring loom on the floor on the RHS. I used the drivers side footwell power and the unit is a concealed one under my steering wheel behind the dash trim. Hardest part was getting the cable under the seat takes a bit of juggling... Sorry I didn't take pictures of the b pillar routing.


Attachments

  • 20230705_193624.jpg
    297.8 KB · Views: 479
  • 20230705_193628.jpg
    240.6 KB · Views: 445
  • 20230705_194255.jpg
    269.5 KB · Views: 433
  • 20230705_194724.jpg
    264.2 KB · Views: 448
  • 20230705_215242.jpg
    233.7 KB · Views: 457
  • 20230705_215255.jpg
    240.5 KB · Views: 459

bakepl

Grenadier Owner
Local time
3:51 AM
Joined
Feb 11, 2022
Messages
548
Reaction score
1,005
Location
Brisbane, Australia
This is a short description of my install of my UHF radio under my steering wheel with the antenna (temporarily) attached to the grab rails. I'm still waiting for my roof rack. My vehicle is RHD with aux power. I used the grommet for my power outlets, under the grab bars. Removed the grab bar and fed the antenna through the grommet, along the roof inside, you'll see where to go once you take the grab bar off. Along the roof down the b pillar. Need to make sure you go behind the curtain airbag above the passenger door or you'll have a problem if you need it... To remove the B pillar trim, start at the bottom, remove the front door and rear door sill trim. Unscrew the bolts and lift the bottom piece off. There are two screws at the bottom of the next piece of trim which need to be removed and the top piece just clips in. You need a trim removal tool and be gentle. I have the removable hose out floor so lifted that in the front and rear. Once I got the cable to the ground, went under the middle of the chair as it was too tight where the wiring loom was. From there along rhs wiring loom on the floor on the RHS. I used the drivers side footwell power and the unit is a concealed one under my steering wheel behind the dash trim. Hardest part was getting the cable under the seat takes a bit of juggling... Sorry I didn't take pictures of the b pillar routing.
Nailed it thanks, much appreciated. Is the radio unit attached by double sided tape or screwed in?


Telliottaus

Grenadier Owner
Lifetime Supporter
Local time
1:51 AM
Joined
Jun 23, 2022
Messages
72
Reaction score
136
Location
Perth, Western Australia
Nailed it thanks, much appreciated. Is the radio unit attached by double sided tape or screwed in?
I actually made a metal plate and put that on top of the metal bracket holding a control box under the steering wheel and screwed through holes in that bracket so no holes drilled in the vehicle. You could achieve the same result with big washers. You could probably get away with double sided tape as the dash trim should hold it in place


AnD3rew

Inch deep and a mile wide.
Grenadier Owner
Lifetime Supporter
Local time
4:51 AM
Joined
Aug 24, 2022
Messages
2,440
Reaction score
6,050
That’s great info thanks. Now just want to hear from the first person to run an aerial cable through the firewall. I want my aerial out the front on the roo bar, not on the roof.


bakepl

Grenadier Owner
Local time
3:51 AM
Joined
Feb 11, 2022
Messages
548
Reaction score
1,005
Location
Brisbane, Australia
I actually made a metal plate and put that on top of the metal bracket holding a control box under the steering wheel and screwed through holes in that bracket so no holes drilled in the vehicle. You could achieve the same result with big washers. You could probably get away with double sided tape as the dash trim should hold it in place
cheers and thank you. I've seen an image of the box you refer to and will do the same. You have me thinking about the antenna mount as I was disappointed no mount is provided on the roo bar (after I was told it definitely has one). Suspect there will be less bouncing around of the antenna if it's mounted off the roo bar and will consider your present antenna position. Perhaps there's some clamp available for the grab rail to suit the below folding mount. I won't be getting a platform which could be another location for the antenna.



Telliottaus

Grenadier Owner
Lifetime Supporter
Local time
1:51 AM
Joined
Jun 23, 2022
Messages
72
Reaction score
136
Location
Perth, Western Australia
cheers and thank you. I've seen an image of the box you refer to and will do the same. You have me thinking about the antenna mount as I was disappointed no mount is provided on the roo bar (after I was told it definitely has one). Suspect there will be less bouncing around of the antenna if it's mounted off the roo bar and will consider your present antenna position. Perhaps there's some clamp available for the grab rail to suit the below folding mount. I won't be getting a platform which could be another location for the antenna.

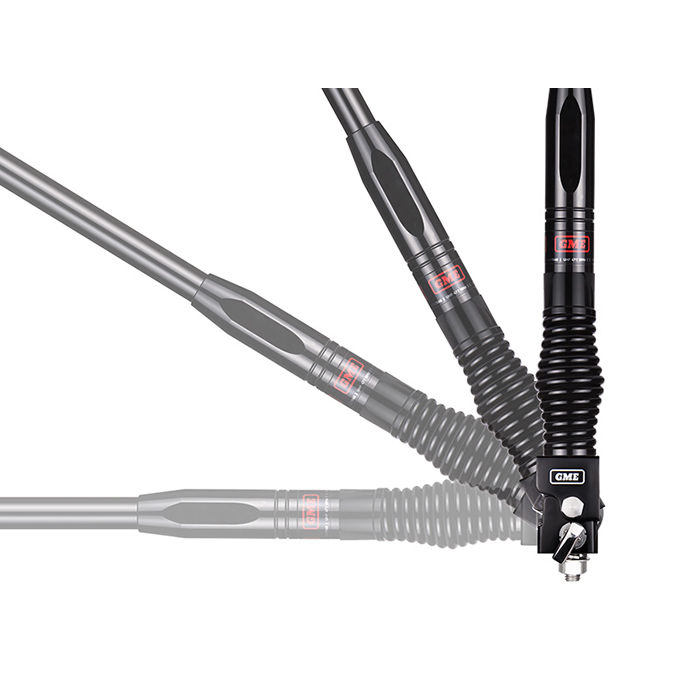

View attachment 7819259
I've ordered the Grenadier folding mount that should come with my roof racks when they arrive. The mount I have was basically the cheapest one that looked strong. The issue is the bar in the grab rail can twist in its mount so will need to watch and see if I need to do anything there


bakepl

Grenadier Owner
Local time
3:51 AM
Joined
Feb 11, 2022
Messages
548
Reaction score
1,005
Location
Brisbane, Australia
I've ordered the Grenadier folding mount that should come with my roof racks when they arrive. The mount I have was basically the cheapest one that looked strong. The issue is the bar in the grab rail can twist in its mount so will need to watch and see if I need to do anything there
ah thanks, yes the tube twisting in it's mount would be an issue. In due course can you tell me the diameter of the tube please and I'll start looking around but the mount you have looks to do the job for sure.


DenisM

Grenadier Owner
Lifetime Supporter
Local time
3:51 AM
Joined
Jan 26, 2022
Messages
2,233
Reaction score
4,445
Location
Brisbane, Queensland Australia
I've ordered the Grenadier folding mount that should come with my roof racks when they arrive. The mount I have was basically the cheapest one that looked strong. The issue is the bar in the grab rail can twist in its mount so will need to watch and see if I need to do anything there
Drill a pilot hole through the mount and into the grab rail (on the "in-side" where it's not noticeable from the kerb) then insert a 6g stainless steel screw (15-20mm should suffice) to lock in place👍


TheDocAUS

Grenadier Owner
Lifetime Supporter
Local time
4:51 AM
Joined
Mar 8, 2023
Messages
2,533
Reaction score
4,433
Location
Eromanga
There are at least two folding mounts. One from Rhino Rack the other from GME. I have the GME.

The folding mount can be fitted to the bullbar (you also need a 50mm bracket for the INEOS Roo Bar) or the roof rack.

You can side mount the folding bracket on the roof rack using a bracket from Razed.

Last edited:

Telliottaus

Grenadier Owner
Lifetime Supporter
Local time
1:51 AM
Joined
Jun 23, 2022
Messages
72
Reaction score
136
Location
Perth, Western Australia
ah thanks, yes the tube twisting in it's mount would be an issue. In due course can you tell me the diameter of the tube please and I'll start looking around but the mount you have looks to do the job for sure.
Diameter is 25mm... I'll find out in the next few days if the twisting is an issue, lots of corrugated roads coming up....


DCPU

Grenadier Owner
Local time
5:51 PM
Joined
Jul 27, 2022
Messages
6,005
Reaction score
13,357
That’s great info thanks. Now just want to hear from the first person to run an aerial cable through the firewall. I want my aerial out the front on the roo bar, not on the roof.
There's a couple of good sized grommets under the bulkhead trim panels. These might be a good place to investigate?

Not forgetting what might be a large space behind the removable panel on the offside.






AnD3rew

Inch deep and a mile wide.
Grenadier Owner
Lifetime Supporter
Local time
4:51 AM
Joined
Aug 24, 2022
Messages
2,440
Reaction score
6,050
Local time
7:51 PM
Joined
Dec 7, 2022
Messages
4
Reaction score
0
Location
Cape Town South Africa
This is a short description of my install of my UHF radio under my steering wheel with the antenna (temporarily) attached to the grab rails. I'm still waiting for my roof rack. My vehicle is RHD with aux power. I used the grommet for my power outlets, under the grab bars. Removed the grab bar and fed the antenna through the grommet, along the roof inside, you'll see where to go once you take the grab bar off. Along the roof down the b pillar. Need to make sure you go behind the curtain airbag above the passenger door or you'll have a problem if you need it... To remove the B pillar trim, start at the bottom, remove the front door and rear door sill trim. Unscrew the bolts and lift the bottom piece off. There are two screws at the bottom of the next piece of trim which need to be removed and the top piece just clips in. You need a trim removal tool and be gentle. I have the removable hose out floor so lifted that in the front and rear. Once I got the cable to the ground, went under the middle of the chair as it was too tight where the wiring loom was. From there along rhs wiring loom on the floor on the RHS. I used the drivers side footwell power and the unit is a concealed one under my steering wheel behind the dash trim. Hardest part was getting the cable under the seat takes a bit of juggling... Sorry I didn't take pictures of the b pillar routing.
Thanks for sharing - what radio did you install. Trying to get a feel for the dimensions allowed under the steering wheel.


AnD3rew

Inch deep and a mile wide.
Grenadier Owner
Lifetime Supporter
Local time
4:51 AM
Joined
Aug 24, 2022
Messages
2,440
Reaction score
6,050
I actually made a metal plate and put that on top of the metal bracket holding a control box under the steering wheel and screwed through holes in that bracket so no holes drilled in the vehicle. You could achieve the same result with big washers. You could probably get away with double sided tape as the dash trim should hold it in place
@Telliottaus Can you describe a bit more about this and particularly about how you might achieve this with big washers? I can’t how you did picture this?


Telliottaus

Grenadier Owner
Lifetime Supporter
Local time
1:51 AM
Joined
Jun 23, 2022
Messages
72
Reaction score
136
Location
Perth, Western Australia
@Telliottaus Can you describe a bit more about this and particularly about how you might achieve this with big washers? I can’t how you did picture this?
If you take off the trim, you can see there is a control box mounted under the steering wheel.this is held in place by a steel bracket that has cut outs to reduce weight. I just cut a small plate that covered some of the cutouts allowing me to screw the radio bracket to that plate through the cut out areas. You could maybe use big washers to bridge the cut outs and bolt through them if you weren't confident with making a plate.
