Rear Cargo Area Dimensions

ShootingCar

Grenadier Owner
Local time
3:12 PM
Joined
Feb 1, 2024
Messages
131
Reaction score
172
Location
Cottonwood, AZ, USA
I looked up this topic but it appeared to be indeterminate regarding if they were from a prototype and not a production truck.

I’m looking at building a drawer system for my new Trialmaster and while I wait, I was hoping to get some dimensions.

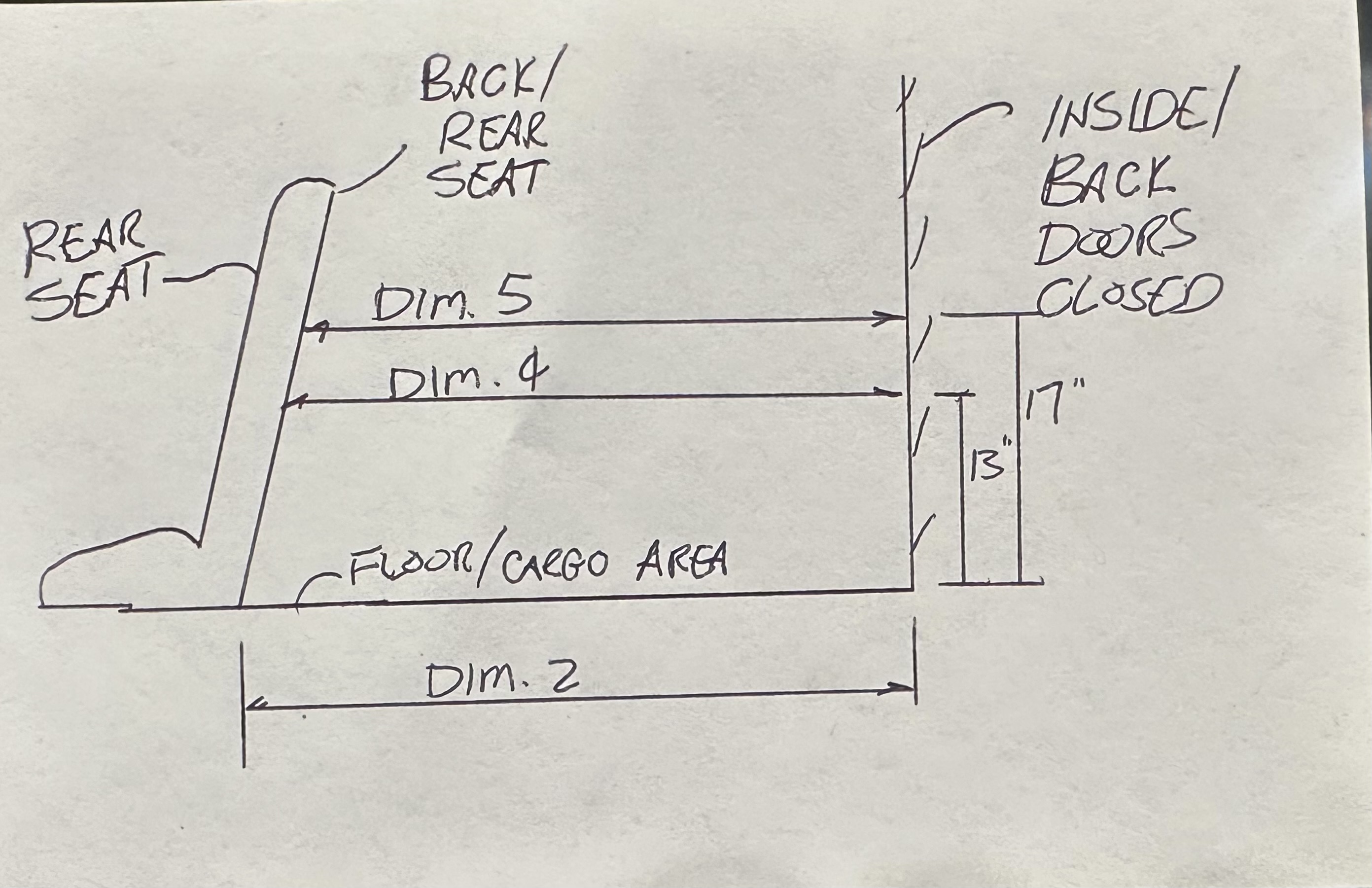

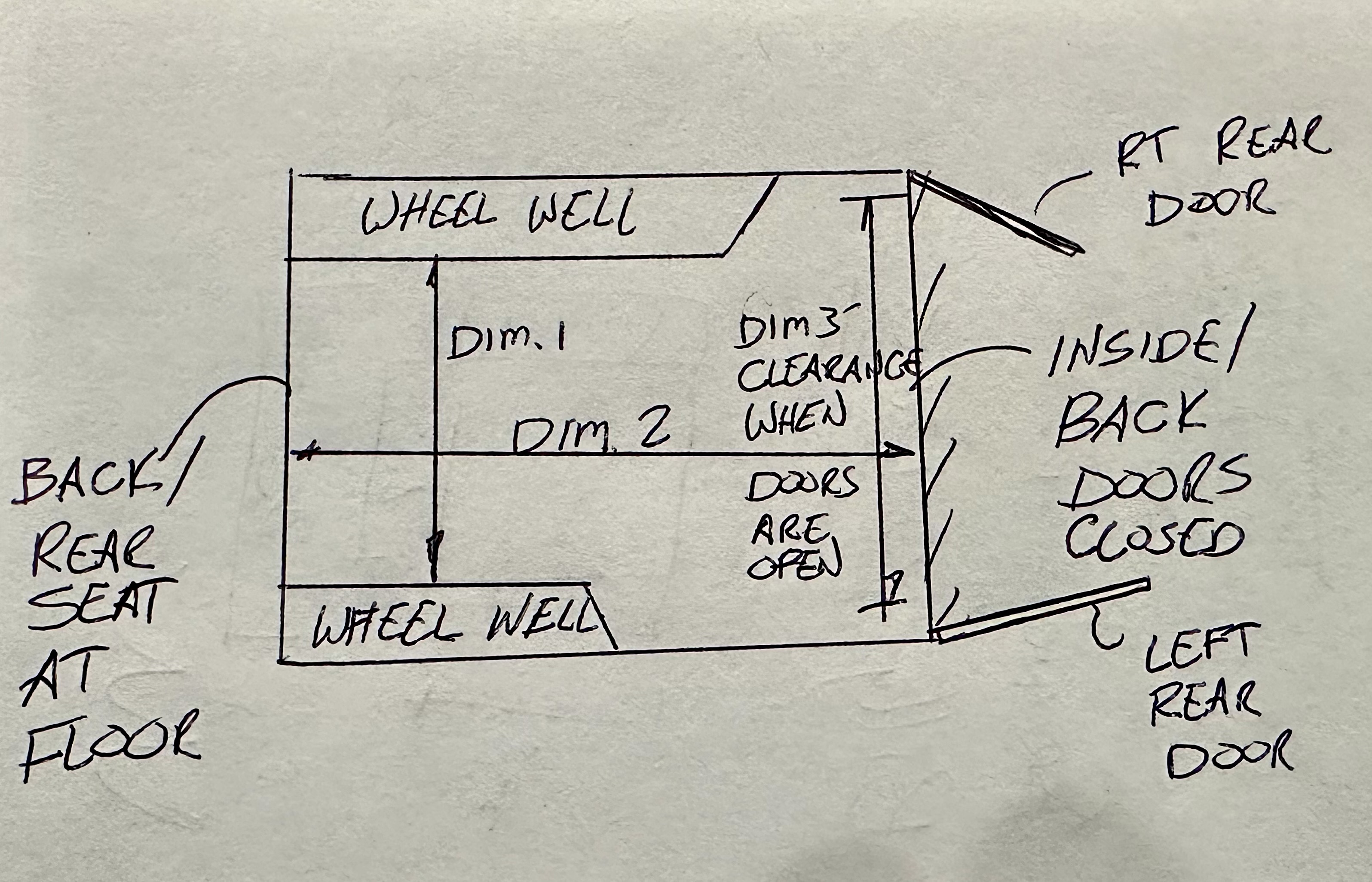

My attached sketches are what I was looking for. Anyone have these handy?

Thanks
Jeff


Attachments

  • IMG_0155.jpeg
    1.4 MB · Views: 33
  • IMG_0160.jpeg
    874.8 KB · Views: 32
